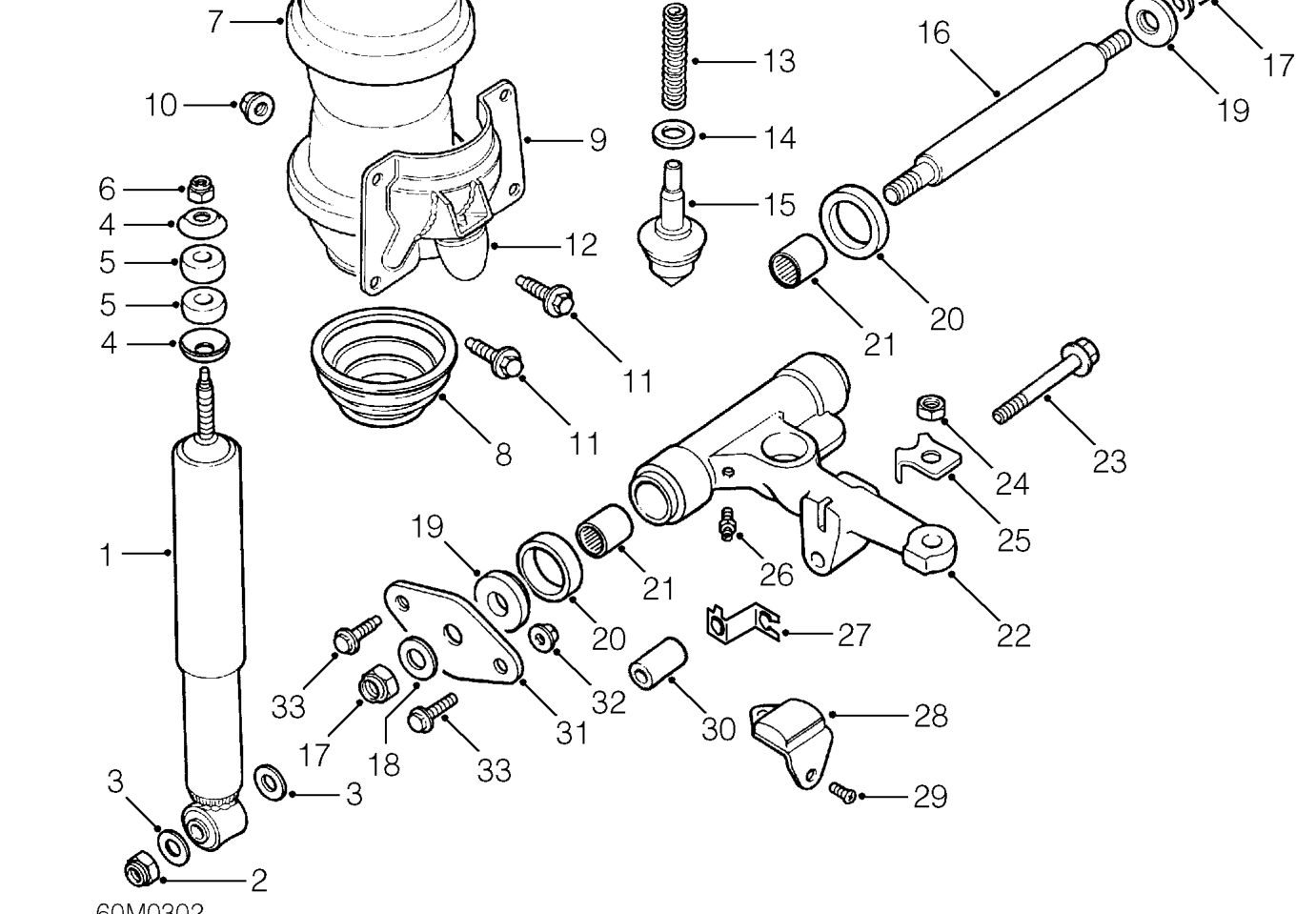

Front suspension components

FRONT SUSPENSION COMPONENTS

1. Damper unit
2. Self locking nut
3. Flat washer
4. Cup washer
5. Damper, top mounting bush
6. Self locking nut
7. Hydragas unit
8. Gaiter
9. Hydragas unit retaining plate
10. Self locking nut
11. Bolts - retaining plate
12. Bump rubber
13. Return spring
14. Spacer
15. Roller foot joint
16. Upper arm pivot shaft
17. Locking nut
18. Flat washer
19. Thrust washer
20. Sealing ring
21. Needle-roller bearing
22. Suspension upper arm
23. Bolt - damper lower mounting
24. Nut - upper ball joint
25. Tab washer - upper ball joint
26. Grease nipple
27. Brake hose bracket
28. Rebound rubber
29. Screw
30. Spacer
31. Upper arm pivot shaft, retaining plate
32. Self locking nut
33. Bolt - retaining plate
