Front suspension components (page 2 of 2)

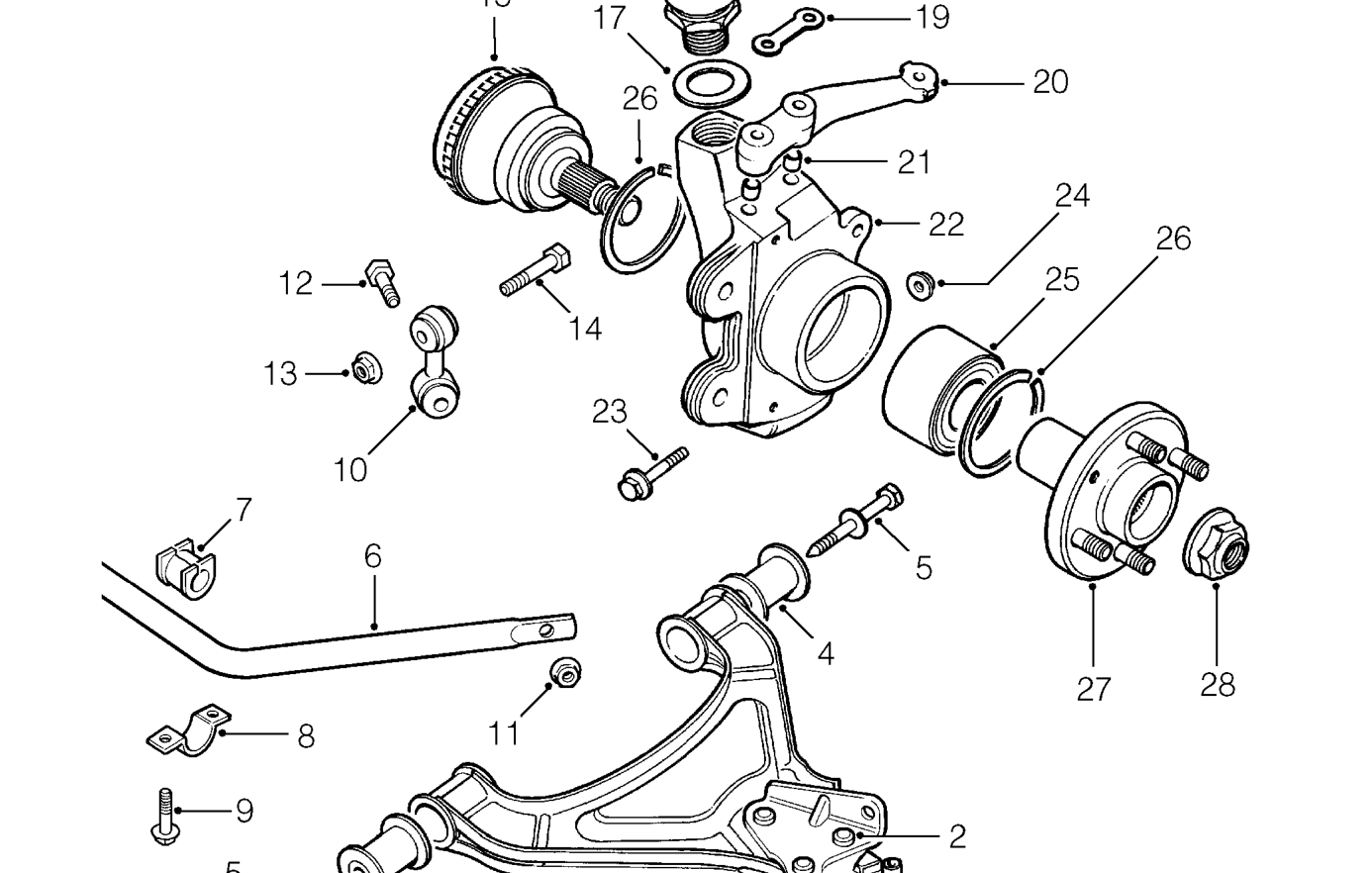

FRONT SUSPENSION COMPONENTS - continued

1. Lower ball joint
2. Rivet (nut and bolt fitted when ball joint renewed)
3. Suspension lower arm
4. Lower arm bush
5. Bolt - lower arm mounting
6. Anti-roll bar
7. Anti-roll bar bush
8. Anti-roll bar, bracket
9. Bolt - anti-roll bar, bracket
10. Anti-roll bar link
11. Self locking nut
12. Bolt - anti-roll bar link
13. Self locking nut
14. Bolt - anti-roll bar link
15. Stub axle
16. Upper balljoint
17. Lock washer
18. Bolt - steering arm
19. Tab washer
20. Steering arm
21. Dowel - steering arm
22. Swivel hub
23. Bolt - lower ball joint
24. Self locking nut
25. Bearing
26. Retaining clip
27. Drive flange
28. Hub nut
