Rear suspension components (page 2 of 2)

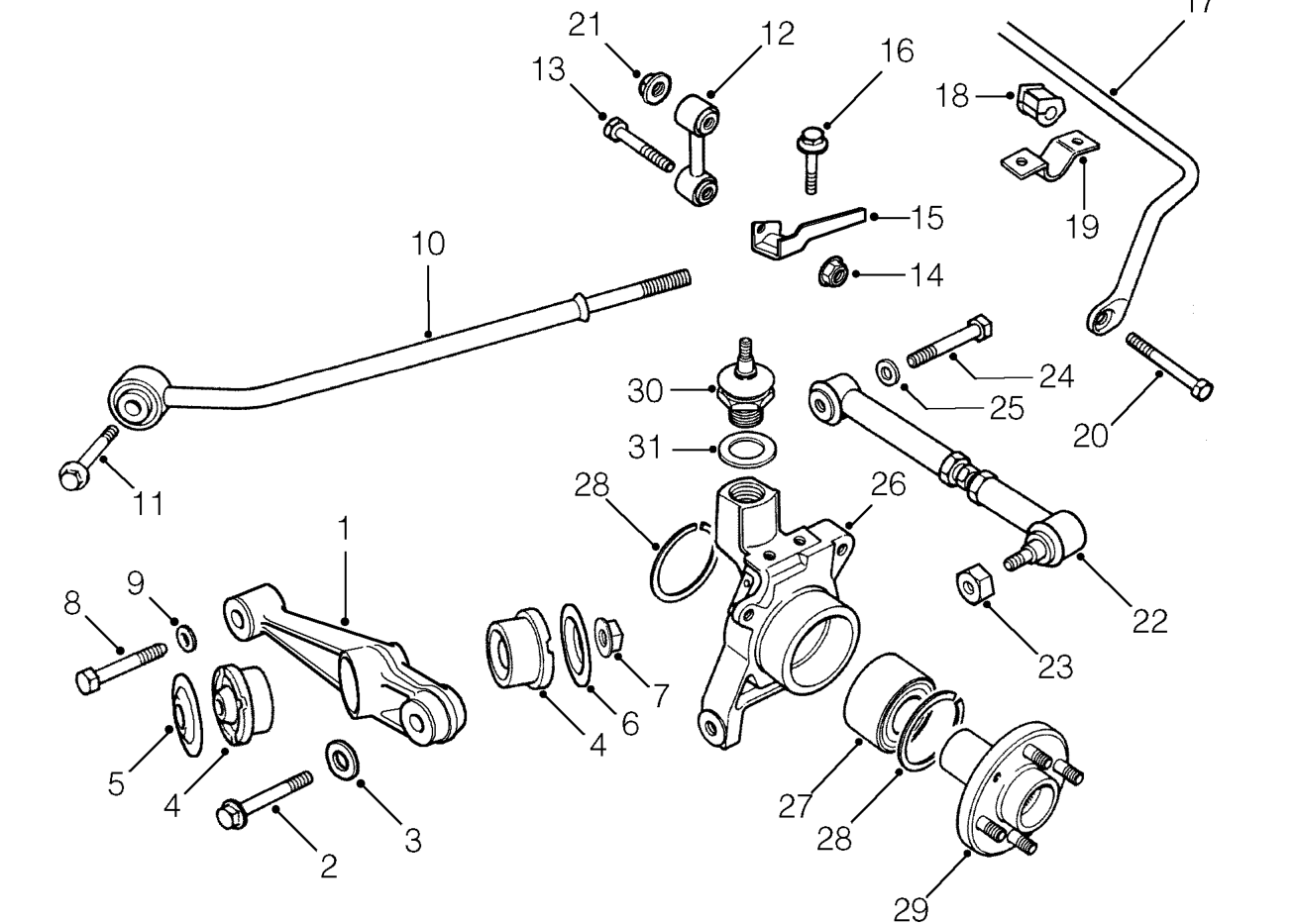

REAR SUSPENSION COMPONENTS - continued

1. Lower suspension arm
2. Bolt - lower suspension arm
3. Flat washer
4. Bush - tie bar
5. Bevelled washer - front
6. Bevelled washer - rear
7. Self locking nut
8. Bolt - lower suspension arm
9. Flat washer
10. Tie bar
11. Bolt - tie bar
12. Anti-roll bar link
13. Bolt - anti-roll bar link
14. Self locking nut
15. Anti-roll bar link, bracket
16. Bolt - anti-roll bar link, bracket
17. Anti-roll bar
18. Bush - anti-roll bar
19. Bracket - anti-roll bar
20. Bolt - anti-roll bar link
21. Self locking nut
22. Track control arm
23. Self locking nut - track control arm
24. Bolt - track control arm
25. Flat washer
26. Hub
27. Bearing
28. Retaining clip
29. Drive flange
30. Upper ball joint
31. Lock washer
