Air conditioningSwitch - trinary

SWITCH - TRINARY

Service repair no - 82.20.86

Remove

  1. Recover refrigerant from A/C system. See Adjustments.

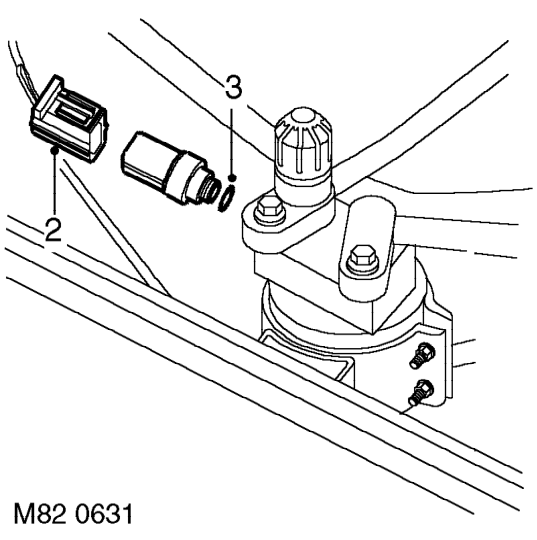

Switch - trinary – Recover refrigerant from A/C system. See Adjustments.
  1. Disconnect trinary switch multiplug.
  2. Remove trinary switch and discard ’O’ ring.

CAUTION: Immediately cap all air conditioning pipes to prevent ingress of dirt and moisture into the system.

Refit

  1. Lubricate new ’O’ ring with clean refrigerant oil and fit to trinary switch.
  2. Fit trinary switch and tighten to 10 Nm.
  3. Connect trinary switch multiplug.
  4. Recharge A/C system. See Adjustments.

THERMOSTATIC EXPANSION VALVE

Service repair no - 82.25.01

Remove

  1. Recover refrigerant from air conditioning system. See Adjustments.

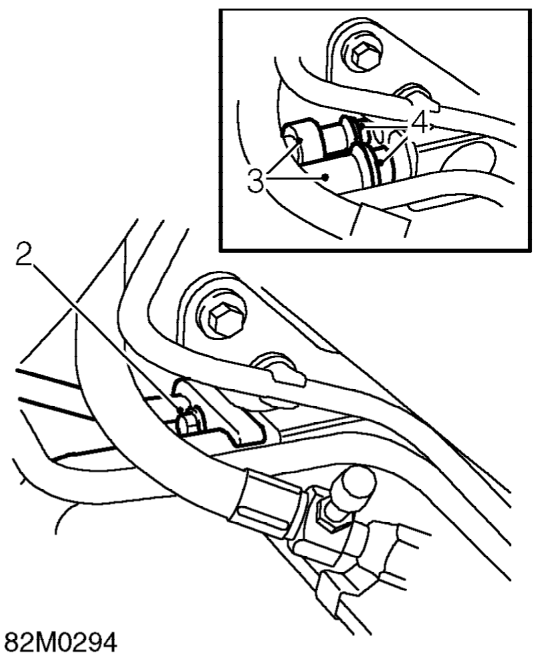

Thermostatic expansion valve – Recover refrigerant from air conditioning system. See Adjustments.
  1. Remove bolt securing pipe clamp to thermostatic expansion valve.
  2. Release 2 air conditioning pipes from valve.
  3. Remove and discard 2 ’O’ rings from air conditioning pipes.

CAUTION: Immediately cap all air conditioning pipes to prevent ingress of dirt and moisture into the system.
