EVAPORATOR

Service repair no - 82.25.20

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove fascia panel. See BODY, Interior trim components.
  2. Remove thermostatic expansion valve. See this section.

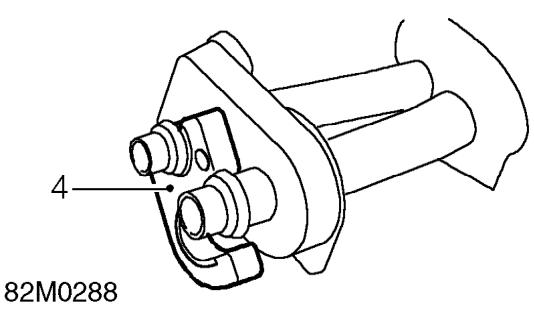

Evaporator – Remove thermostatic expansion valve. See this section.
  1. Remove pipe clamp from evaporator pipes.
  2. Remove screen vent duct from heater.

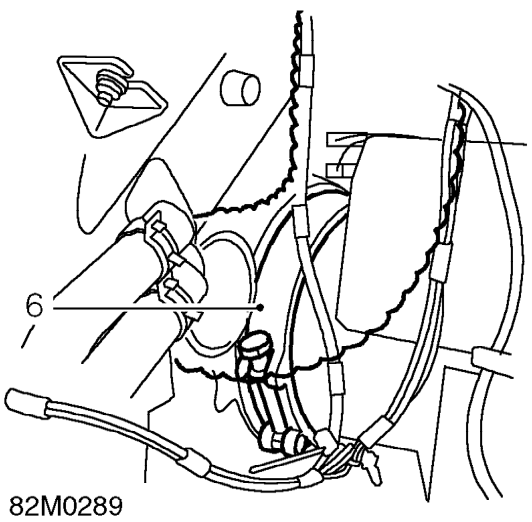

Evaporator – Remove screen vent duct from heater.
  1. Remove clamp securing evaporator to heater.

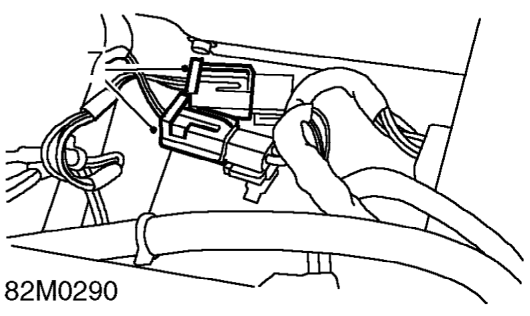

Evaporator – Remove clamp securing evaporator to heater.
  1. Disconnect 2 multiplugs from evaporator.

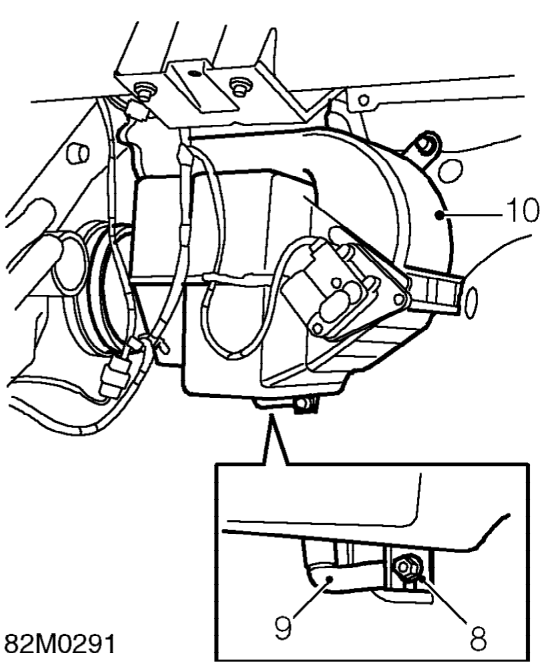

Evaporator – Disconnect 2 multiplugs from evaporator.
  1. Remove 2 nuts securing evaporator to lower dash panel.
  2. Release evaporator drain hose from evaporator.
  3. Remove evaporator assembly.
