MG TF Factory Workshop Manual (2002-2005)09 · Clutch
09 · Transmission

Clutch (Clutch components): Description and operation

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Description and operation › Clutch components
ClutchClutch components

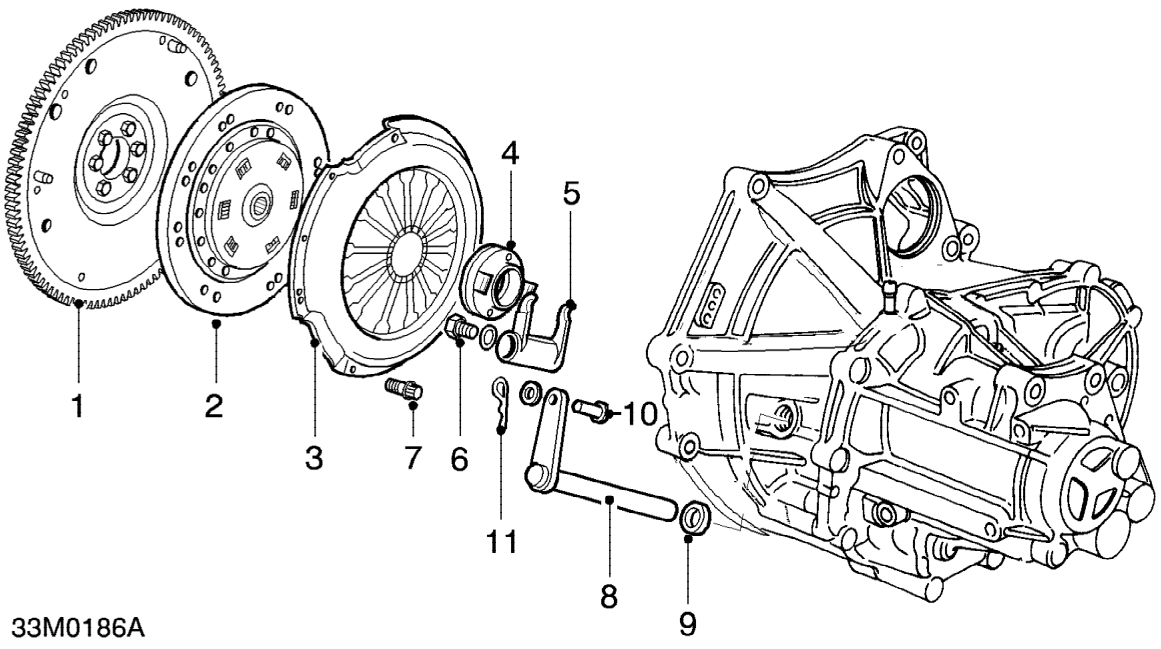

CLUTCH COMPONENTS

Clutch components
  1. Flywheel
  2. Clutch plate
  3. Pressure plate
  4. Release bearing
  5. Release bearing fork
  6. Fork retaining bolt
  7. Pressure plate bolts
  8. Clutch release shaft
  9. Clutch release shaft, washer
  10. Clevis pin
  11. ’R’ clip
