ClutchMaster cylinder components

MASTER CYLINDER COMPONENTS

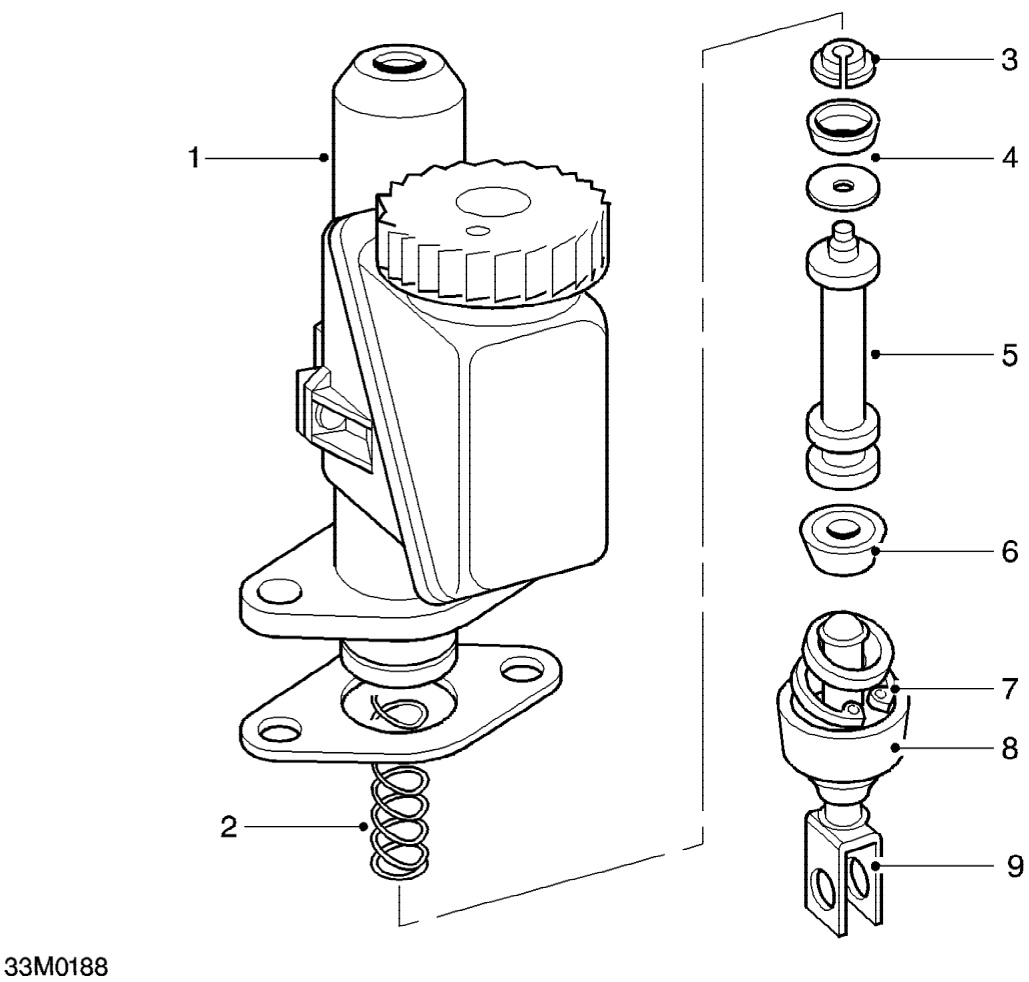

Master cylinder components
  1. Master cylinder
  2. Spring
  3. Spring seat
  4. Seal and washer
  5. Piston
  6. Seal
  7. Circlip
  8. Boot
  9. Push-rod
