Drive shaft inner gaiter

DRIVE SHAFT INNER GAITER

Service repair no - 47.10.16

Remove

1. Remove drive shaft outer joint. See this section.
2. Slide outer gaiter off shaft.

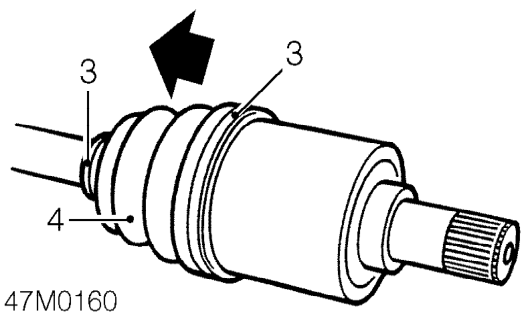

3. Release both inner gaiter clips and discard.
4. Slide inner gaiter off shaft.
5. Inspect gaiter for signs of damage and renew if necessary.
6. Clean shaft and joint.

Refit

1. Smear grease around joint.
2. Position gaiter to inner joint and use a band-it thriftool to secure 2 new clips.
3. Fit outer gaiter to shaft.
4. Fit outer joint. See this section.

DYNAMIC DAMPER - DRIVE SHAFT - RH

Service repair no - 47.10.33

Remove

1. Remove drive shaft outer gaiter. See this section.
2. Clean shaft with emery cloth to remove rust.
3. Lubricate shaft with liquid soap to aid damper removal.
4. Slide damper from shaft.

Refit

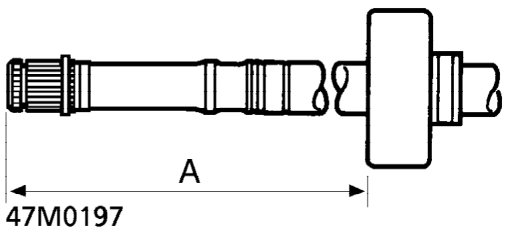

1. Measure along shaft for fitted position of damper.
2. Mark shaft for fitting position. Dimension ’A’ = 398.5 mm. ± 3 mm.
3. Lubricate shaft for fitting of damper.
4. Position damper to mark.
5. Clean lubricant from shaft.
6. Fit drive shaft outer gaiter. See this section.
