OIL SEAL - DIFFERENTIAL HOUSING - LH - MANUAL TRANSMISSION MODELS

Service repair no - 54.10.18

Remove

  1. Remove LH drive shaft. See this section.
  2. Carefully remove oil seal from differential housing, discard oil seal.

Refit

  1. Thoroughly clean oil seal recess in differential housing, splines and oil seal running surface on drive shaft.
Oil seal - differential housing - lh - manual transmission models – Thoroughly clean oil seal recess in differential housing, splines and oil seal running sur

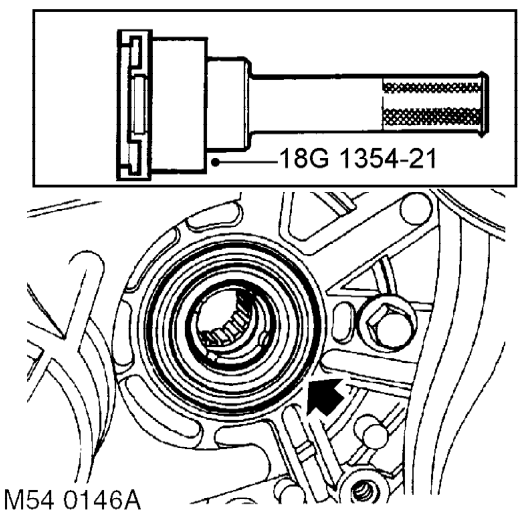

  1. Locate new oil seal on 18G-1354/21 with sealing lip facing towards differential housing.
  2. Carefully drift oil seal into differential housing until it is fully seated in recess.
  3. Remove 18G-1354/21 .
Oil seal - differential housing - lh - manual transmission models – Remove 18G-1354/21 .

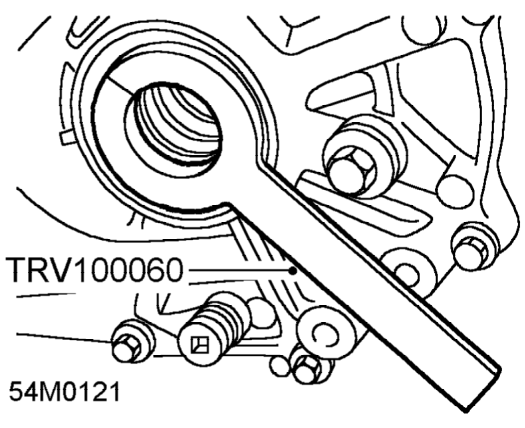

  1. Fully insert oil seal protector tool Unipart TRV 100060 into differential oil seal to protect oil seal lip. Ensure that the split end of tool is butted correctly.
  2. Fit LH drive shaft. See this section.
  3. Check, and if necessary, top-up gearbox oil.
