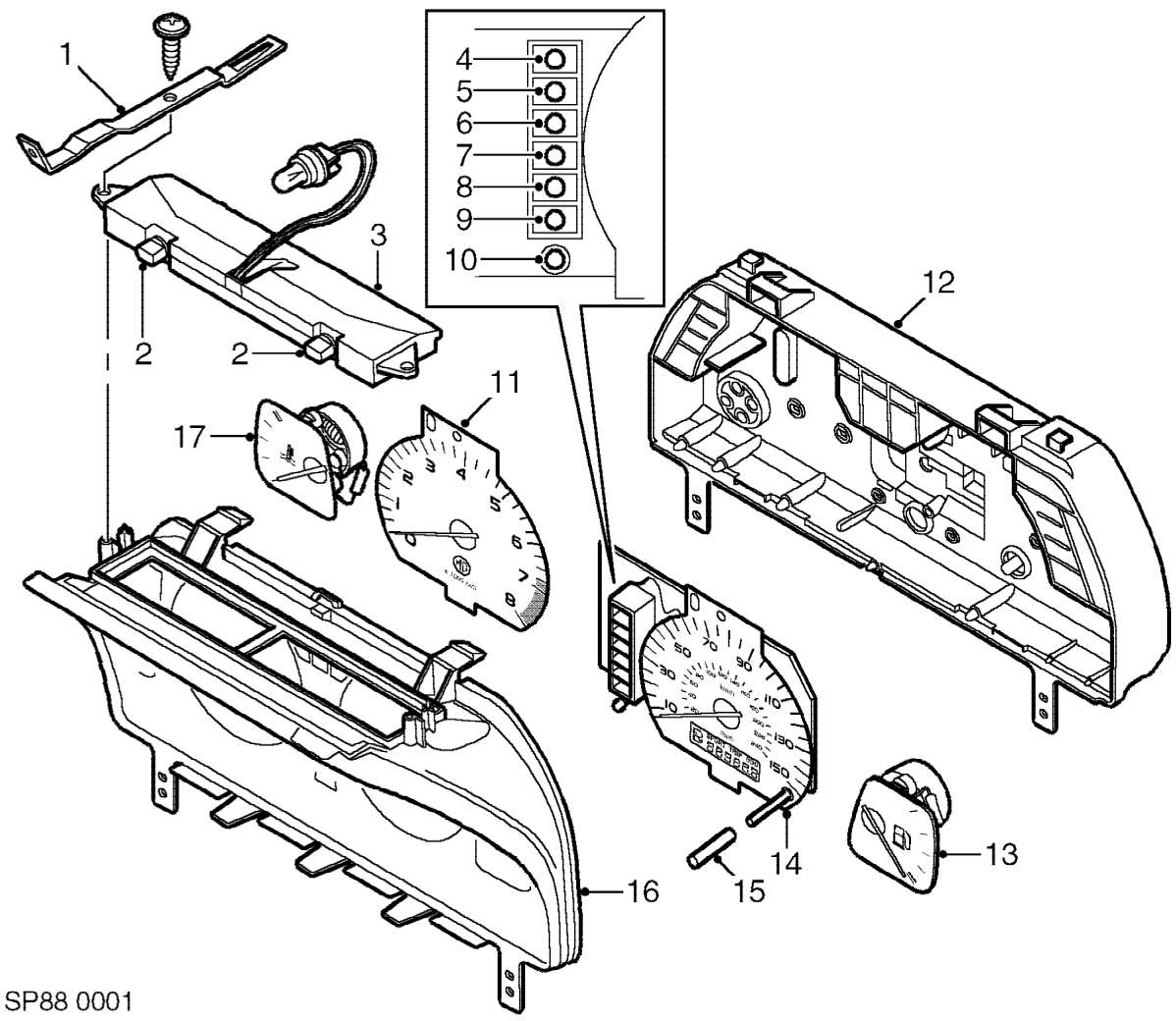

INSTRUMENT PACK COMPONENTS - EXPLODED VIEW

1. Support bracket
2. Panel front illumination bulbs
3. Panel illumination and printed circuit
4. Boot open - warning light bulb
5. Engine bay cooling fan - warning light bulb
6. EPAS - warning light bulb
7. Seat belt - warning light bulb
8. Oil temperature - warning light bulb
9. SRS - warning light bulb
10. Anti-theft warning LED
11. Tachometer
12. Instrument panel housing
13. Fuel gauge
14. Speedometer
15. Control knob - trip distance
16. Instrument panel and face plate
17. Coolant temperature gauge
