Oil temperature gauge (Instruments)

Make

MG

Model

TF Factory Workshop Manual

Year

2002–2005

Section

Description and operation › Oil temperature gauge

InstrumentsOil temperature gauge

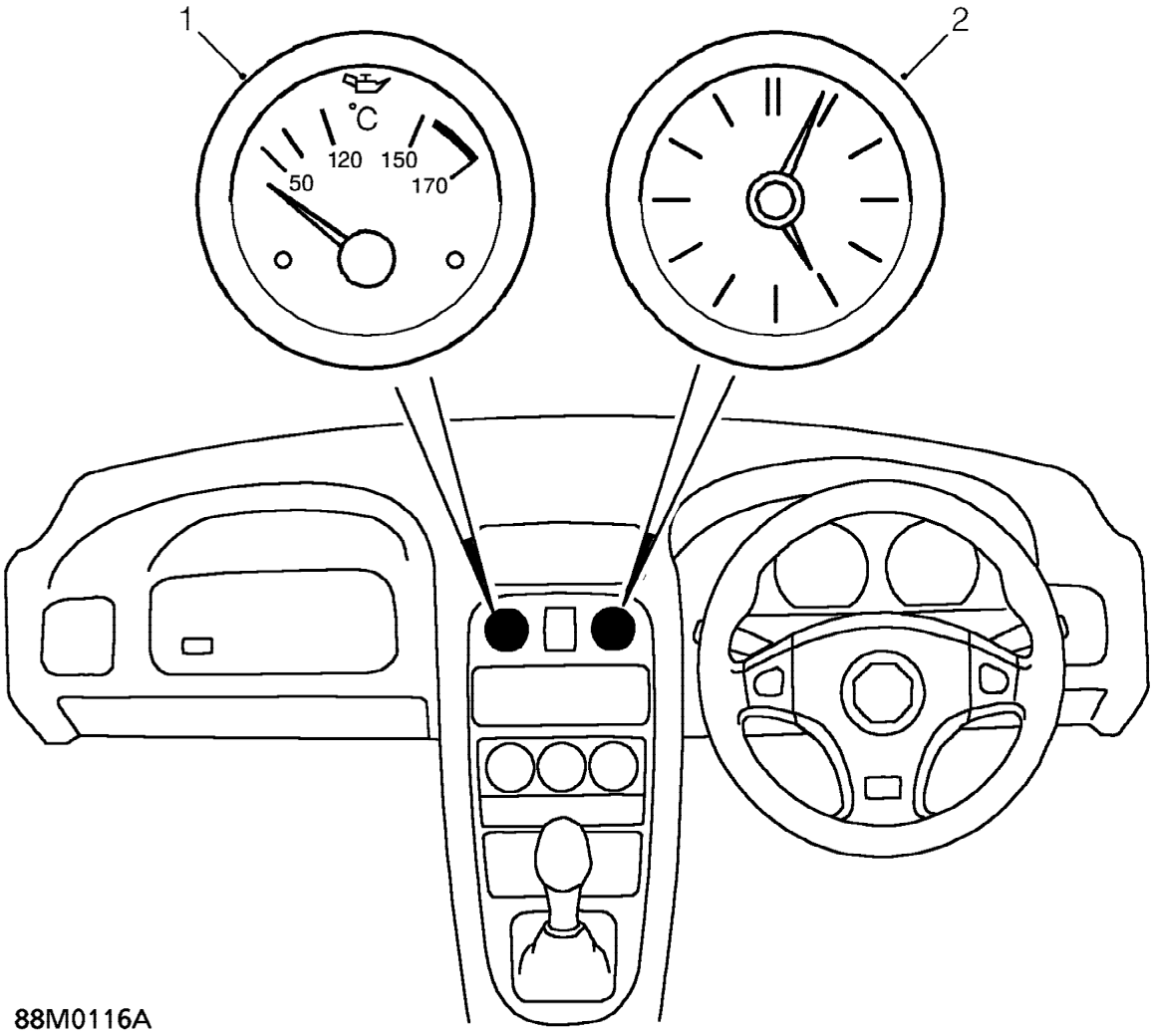

1. Oil temperature gauge
2. Analogue clock

Oil temperature gauge

Th oil temperature gauge (1) is fitted with a return magnet causing the gauge to return to zero when the ignition is switched off.

170°C sender

Sender resistance	Temperature
574 Ω 71 Ω	60°C
202 Ω 24 Ω	90°C
84 Ω 9 Ω	120°C

23 Electrical
