MG TF Factory Workshop Manual (2002-2005)21 · Wipers and washers
21 · Electrical

Wipers and washers (Washer components): Description and operation

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Description and operation › Washer components
Wipers and washersWasher components

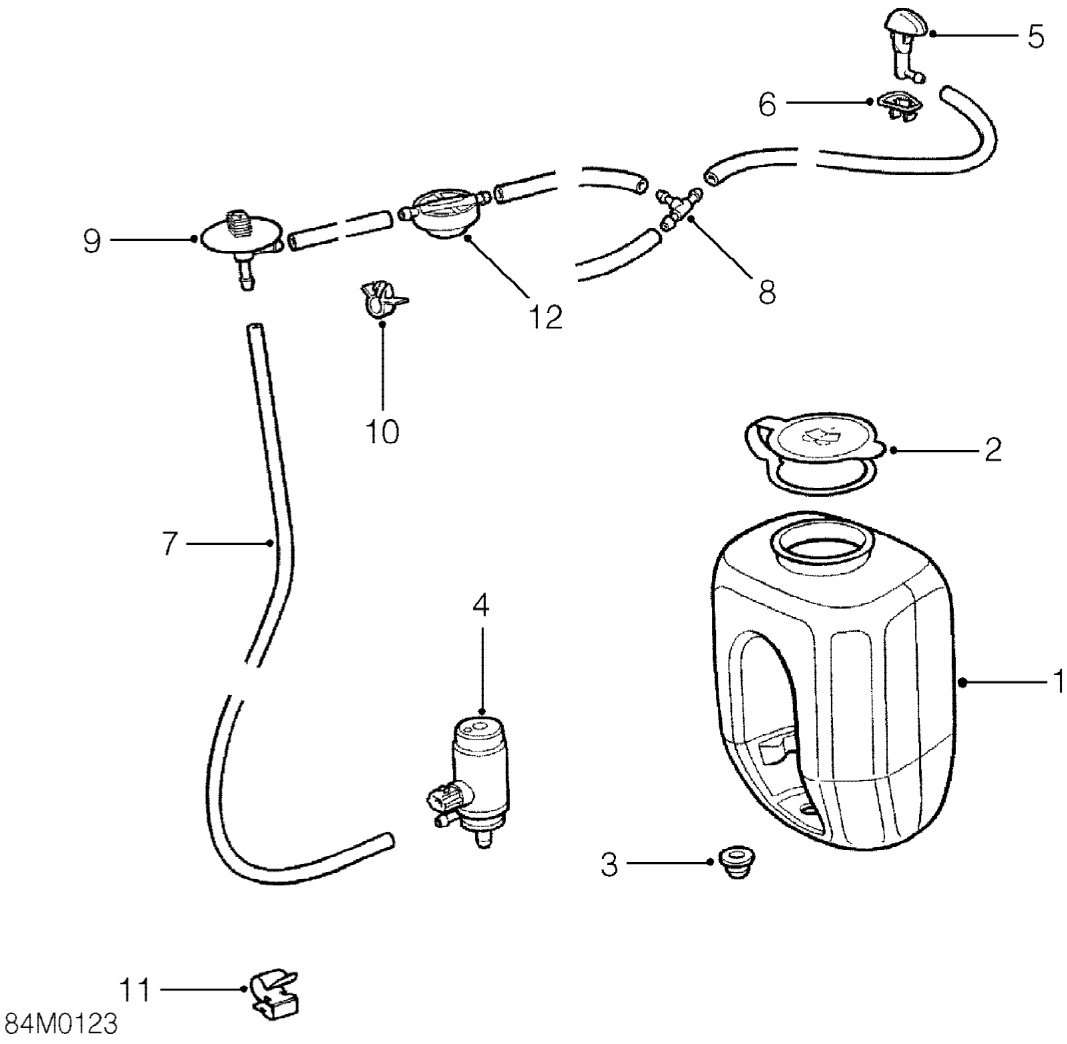

WASHER COMPONENTS

Washer components
  1. Reservoir
  2. Reservoir cap
  3. Bush washer - reservoir
  4. Pump - windscreen washer
  5. Jet washer, 2 off
  6. Gasket - jet washer, 2 off
  7. Washer tube
  8. Tee connector
  9. Elbow connector
  10. Clip - tube to bonnet, 4 off
  11. Clip - tube to body, 2 off
  12. Non-return valve
