Windscreen wiper components (Wipers and washers)
- Make
- MG
- Model
- TF Factory Workshop Manual
- Year
- 2002–2005
- Section
- Description and operation › Windscreen wiper components
Wipers and washersWindscreen wiper components

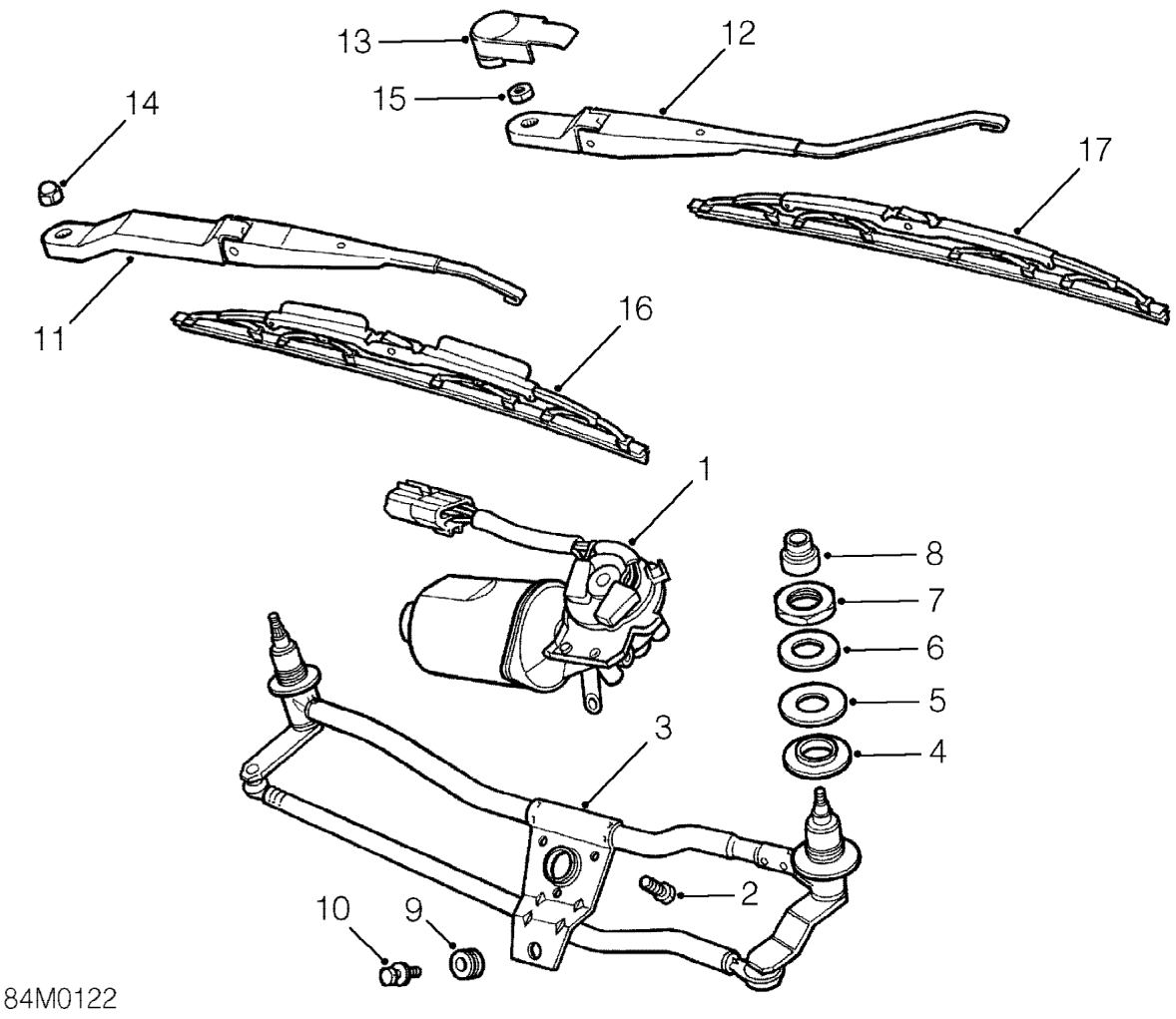

WINDSCREEN WIPER COMPONENTS
- Wiper motor
- Bolt - motor to mechanism, 3 off
- Wiper mechanism assembly
- Sealing washer - spindle, 2 off
- Washer - spindle, 2 off
- Washer - spindle, 2 off
- Nut - spindle, 2 off
- Spindle cap, 2 off
- Rubber grommet
- Bolt - mechanism to body plate
- Wiper arm - driver side
- Wiper arm - passenger side
- Cover
- Bevel nut - wiper arm
- Nut - wiper arm
- Windscreen wiper - driver side
- Windscreen wiper - passenger side
