Windscreen (page 2 of 2)

Make

Mini

Model

Mini Workshop Manual

Year

1996–2000

Section

Screens

BodyWindscreen · page 2 of 2

5. Thread end of the finisher strip through the eye of tool 18G 468B and under the roller.

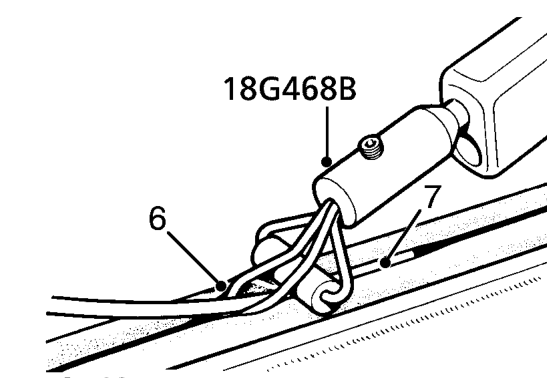

6. Starting at the top centre of the windscreen sealing rubber, insert eye of tool into finisher strip groove.
7. Slowly push tool around entire length of sealing rubber, feeding the finisher strip into the groove as the eyelet on the tool opens it and use the roller to bed it into the seal.
8. Remove tool 18G 468B and fit chrome finisher plate into sealing rubber to cover the ends of the finisher strip.
9. Clean windscreen.
10. Fit windscreen wiper arms. See WIPERS & WASHERS, Repairs.
11. Remove protective covers from bonnet and wings.
