WASHER TUBE

Service repair no - 84.10.15

Remove

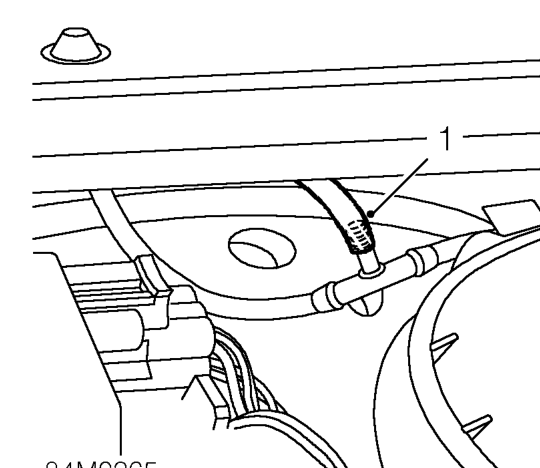

Washer tube – Service repair no - 84.10.15
  1. Disconnect washer tube from ’T’ connector underbonnet.
  2. Release sound deadening pad from bulkhead.

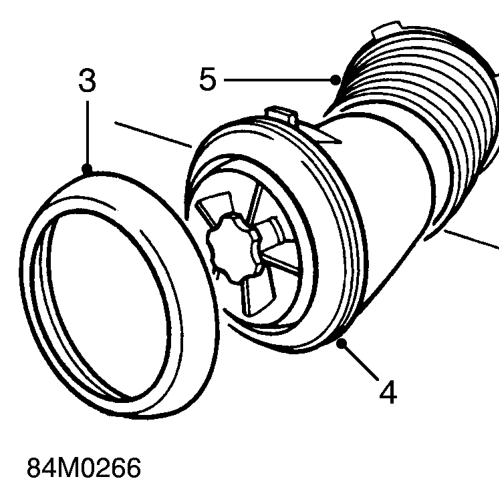

Washer tube – Release sound deadening pad from bulkhead.
  1. Remove locking ring securing RH air vent to fascia.
  2. Release and remove air vent from fascia.
  3. Remove air vent tube.
  4. Release sound deadening pad from bulkhead.

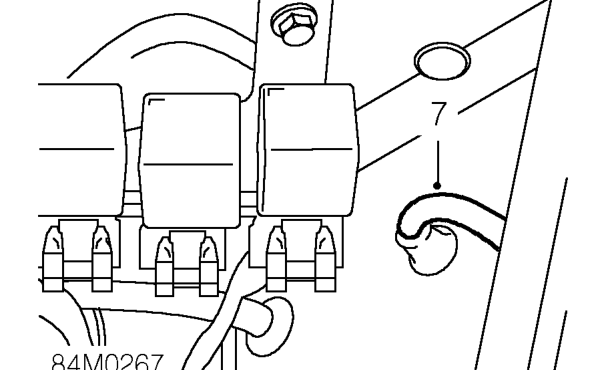

Washer tube – Release sound deadening pad from bulkhead.
  1. Withdraw washer tube through grommet in bulkhead.
  2. Attach draw string to washer tube and secure with tape.
