Windscreen wiper wheel box and cable rack tube

Refit

1. Position wiper motor mounting pad to body.
2. Lubricate wiper motor cable rack.
3. Feed cable rack into tube, ensuring the rack engages with the wheelbox teeth.
4. Position wiper motor to mounting pad.
5. Connect multiplug to wiper motor.
6. Position wiper motor retaining strap and secure with screws.
7. Tighten nut securing cable rack tube to wiper motor.
8. Connect earth lead to wiper motor.
9. Position emission canister purge valve to body, fit bolts and tighten to 9 Nm.
10. Connect emission canister pipe to purge valve and secure with ’E’ clip.
11. Fit wiper arms. See this section.
12. Connect battery earth lead.

WINDSCREEN WIPER WHEEL BOX AND CABLE RACK TUBE

Service repair no - 84.15.27

Remove

1. Remove windscreen wiper motor. See this section.
2. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

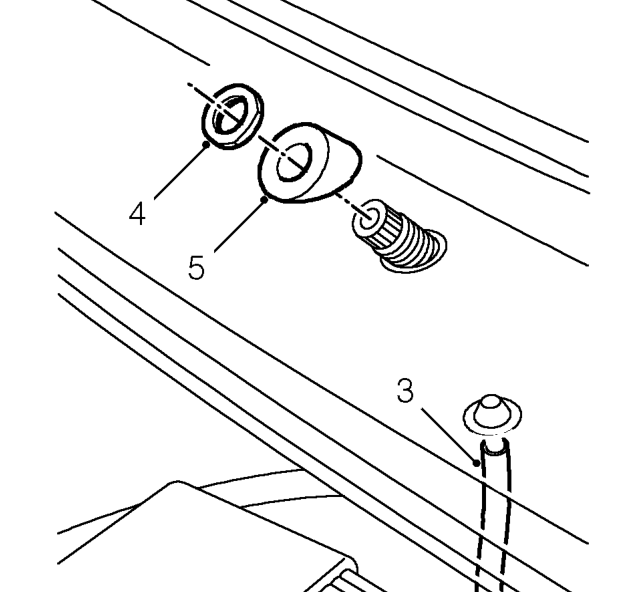

3. Disconnect washer tube from washer jets.
4. Remove 2 nuts securing wiper wheel boxes to body.
5. Remove rubber spacers from wheel boxes.
