WIPER ARM

Service repair no - 84.15.01

Remove

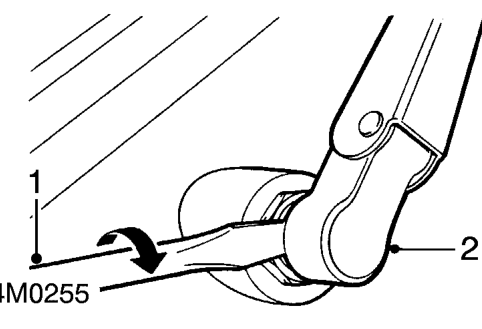

Wiper arm – Service repair no - 84.15.01
  1. Carefully lever wiper arm from splines on wheelbox spindle using a flat bladed screwdriver.
  2. Remove wiper arm from wheelbox spindle.

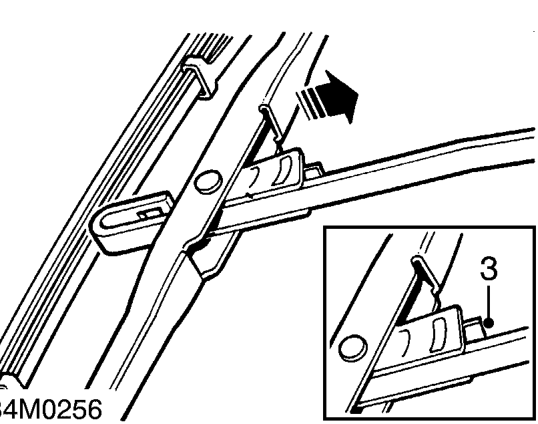

Wiper arm – Remove wiper arm from wheelbox spindle.
  1. Press clip and remove wiper blade from arm.

Refit

  1. Fit wiper blade to arm.
  2. Align wiper arm to screen and push onto wheelbox spindle.

WINDSCREEN WIPER MOTOR

Service repair no - 84.15.12

Remove

  1. Disconnect battery earth lead.
  2. Remove both windscreen wiper arms. See this section.

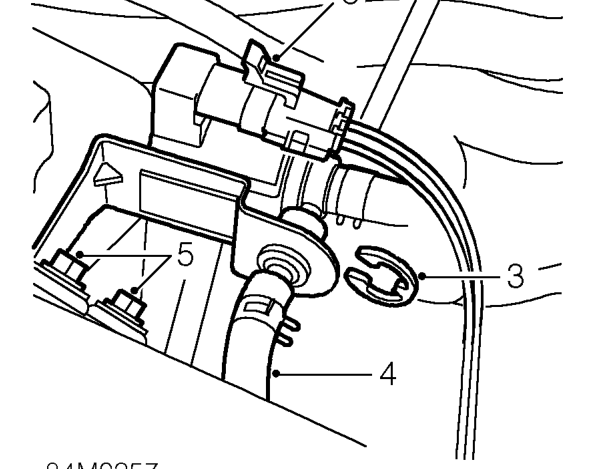

Windscreen wiper motor – Remove both windscreen wiper arms. See this section.
  1. Remove ’E’ clip securing emission canister pipe to mounting bracket.
  2. Release emission canister pipe from mounting bracket.
  3. Remove 2 bolts securing emission canister purge valve to body.
  4. Position purge valve aside.
