WINDSCREEN WASHER AND WIPER SWITCH

Service repair no - 84.15.34

Remove

  1. Remove rotary coupler. See ELECTRICAL, Repairs.
Windscreen washer and wiper switch – Remove rotary coupler. See ELECTRICAL, Repairs.

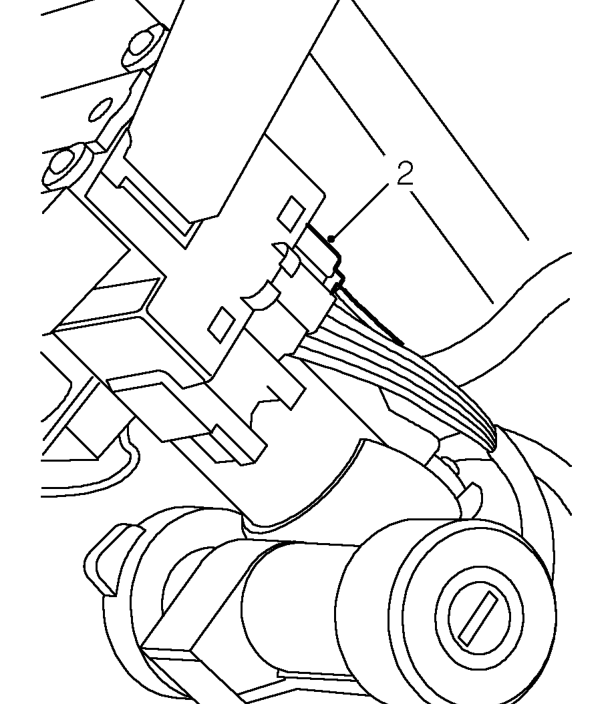

  1. Disconnect multiplug from switch.
Windscreen washer and wiper switch – Disconnect multiplug from switch.

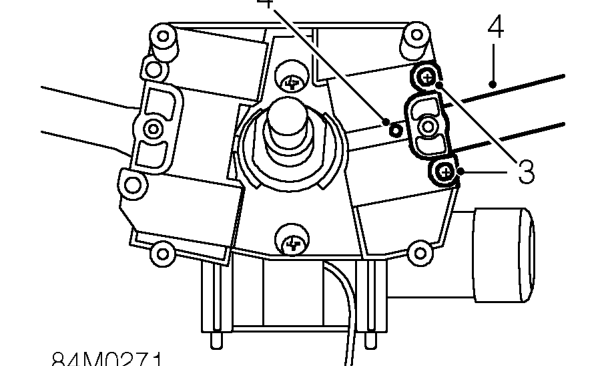

  1. Remove 2 screws securing switch to switch assembly
  2. Depress retaining tag and remove switch.

Refit

  1. Fit windscreen washer and wiper switch to switch assembly and secure with screws.
  2. Connect multiplug to switch.
  3. Fit rotary coupler. See ELECTRICAL, Repairs.
