Windscreen wiper wheel box and cable rack tube (page 2 of 2)

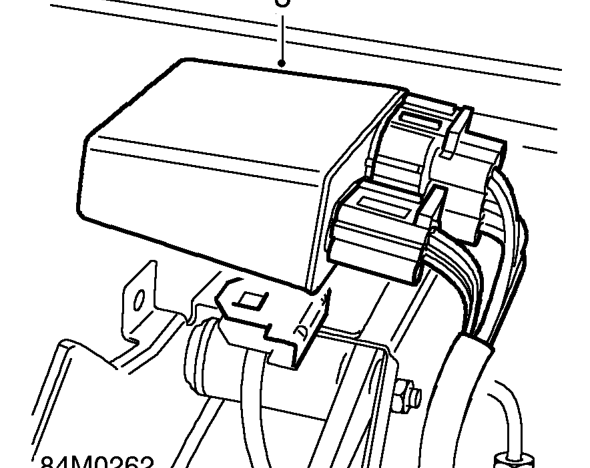

6. Release engine management relay module from mounting bracket and position aside.

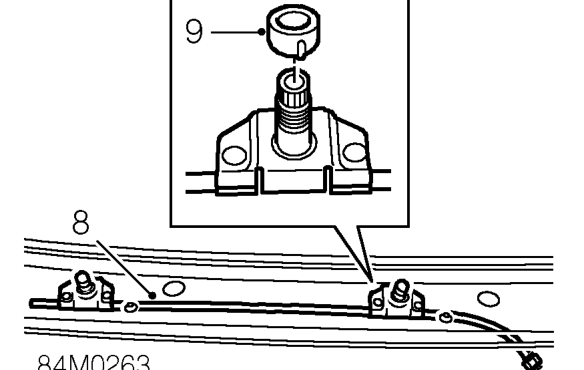

7. Release wheel boxes from body.

8. Rotate wheel box and cable rack tube assembly and remove from vehicle.

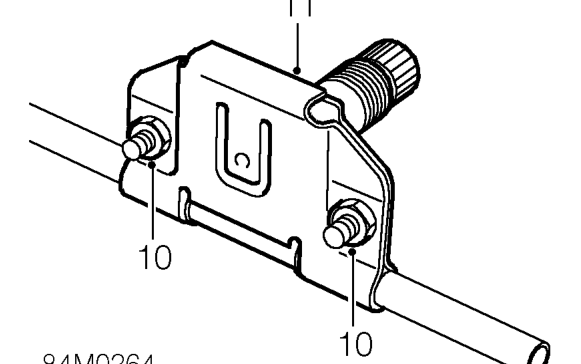

9. Collect 2 rubber spacers.

10. Loosen nuts securing wiper wheel boxes to cable rack tube.
11. Remove wiper wheel boxes.

Refit

1. Lubricate wheel box gears and spindles.
2. Fit wheel boxes to cable rack tube but do not tighten securing nuts.
3. Fit rubber spacers to wheel box spindles.
4. Position wheel box and cable rack tube assembly to body.
5. Fit rubber spacers to wheel box spindles, fit nuts and tighten to 10 Nm.
6. Secure engine management relay module to mounting bracket.
7. Fit wiper motor. See this section.
8. Operate wiper motor and check that wipers move smoothly across screen.
9. Tighten nuts securing wheel boxes to cable rack tube.
10. Connect washer tube to washer jets.
11. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
