Cooling systemCoolant expansion tank

COOLANT EXPANSION TANK

Service repair no - 26.15.01

Remove

  1. Drain cooling system. See Adjustments.

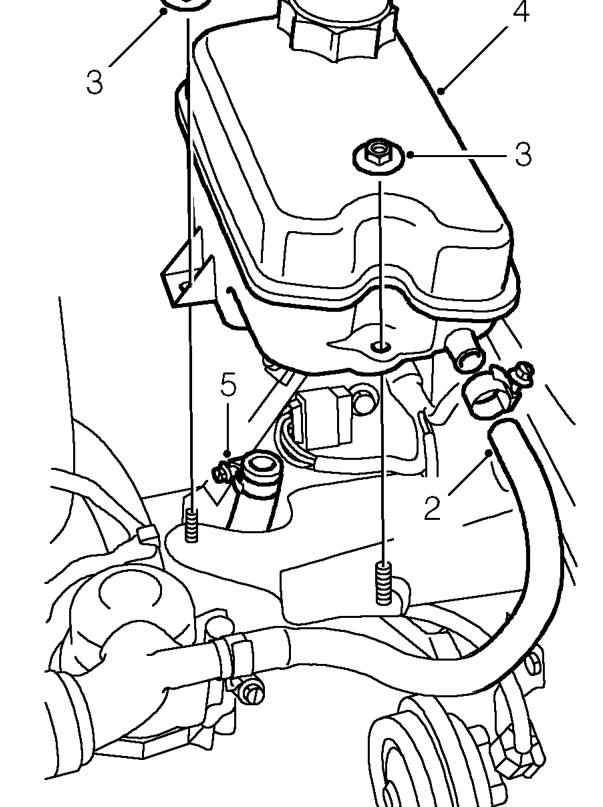

Coolant expansion tank – Drain cooling system. See Adjustments.
  1. Loosen clip and disconnect hose from expansion tank.
  2. Remove 2 nuts securing expansion tank to mounting bracket.
  3. Release expansion tank from mounting
  4. Release clip and disconnect coolant feed hose from expansion tank.
  5. Remove coolant expansion tank.

Refit

  1. Position coolant expansion tank.
  2. Connect coolant feed hose to expansion tank and secure with clip.
  3. Position expansion tank on mounting bracket, fit nuts and tighten to 10 Nm.
  4. Connect hose to expansion tank and tighten clip.
  5. Refill cooling system. See Adjustments.
