Cooling fan relay

Refit

1. Position radiator cooling fan in vehicle.
2. Align cooling fan to radiator, fit bolts and tighten to 7 Nm.
3. Align radiator to lower mountings.
4. Position cooling fan multiplug to radiator, fit bolt and tighten to 7 Nm.
5. Fit upper mounting brackets to radiator and align to bonnet locking platform.
6. Fit bolts securing radiator upper mounting brackets to bonnet locking platform and tighten to 9 Nm.
7. Connect cooling fan multiplug to harness.
8. Fit front grille. See BODY, Exterior fittings.

COOLING FAN RELAY

Service repair no - 26.25.41

Remove

1. Open bonnet.

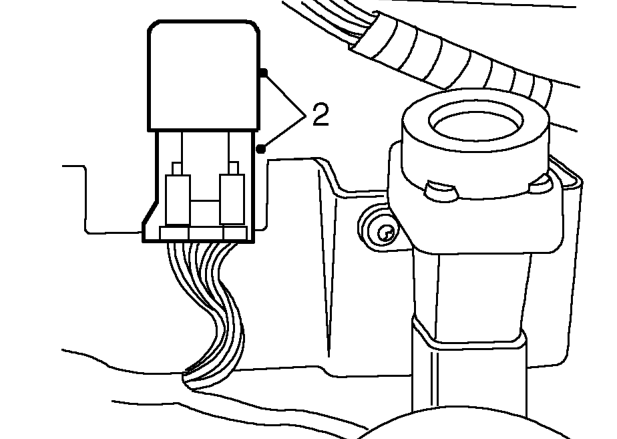

2. Remove relay from multiplug on bulkhead.

Refit

1. Fit relay to multiplug on bulkhead.
2. Close bonnet.
