Cooling systemCoolant pump pulley

COOLANT PUMP PULLEY

Service repair no - 26.25.03

Remove

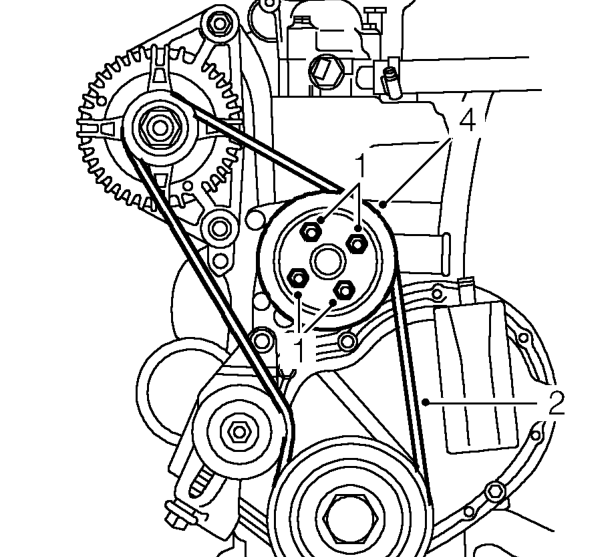

Coolant pump pulley – Service repair no - 26.25.03
  1. Loosen 4 bolts securing coolant pump pulley.
  2. Remove auxiliary drive belt. See ELECTRICAL, Repairs.
  3. Remove 4 bolts securing coolant pump pulley.
  4. Remove pulley.

Refit

  1. Ensure mating faces of pulley and coolant pump flange are clean.
  2. Fit pulley to pump and tighten bolts to 10 Nm.
  3. Fit auxiliary drive belt. See ELECTRICAL, Repairs.

RADIATOR COOLING FAN

Service repair no - 26.25.22

Remove

  1. Remove front grille. See BODY, Exterior fittings.

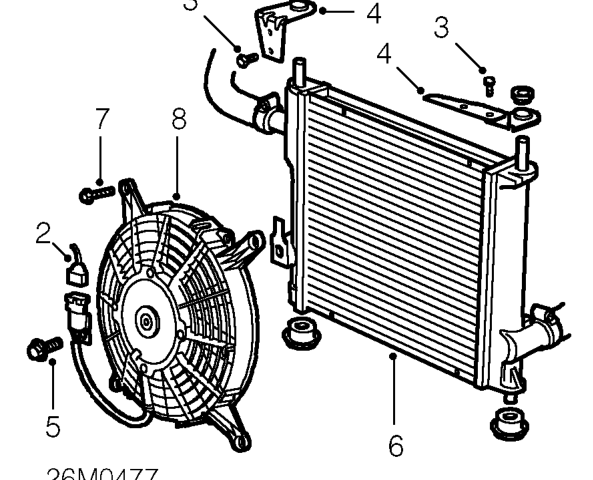

Radiator cooling fan – Remove front grille. See BODY, Exterior fittings.
  1. Disconnect radiator cooling fan multiplug from harness.
  2. Remove 4 bolts securing 2 upper radiator mounting bracket to bonnet locking platform.
  3. Remove 2 upper radiator mounting brackets.
  4. Remove bolt securing cooling fan multiplug to radiator.
  5. Release radiator from lower mountings.
  6. Manoeuvre radiator to gain access to bolts and remove 4 bolts securing cooling fan to radiator.
  7. Remove radiator cooling fan.
