Drive shaft and outer joint (page 5 of 5)

Refit

1. Clean both ends of drive shaft.

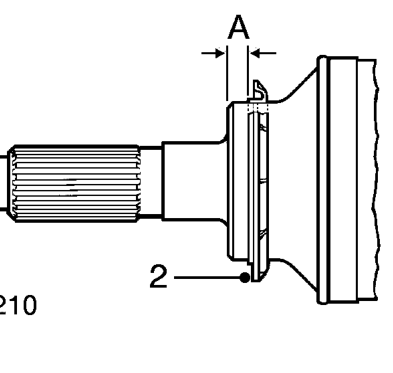

2. Fit hub bearing water shield onto drive shaft as shown: ’A’ = 6 mm approximately.
3. Lubricate end of drive shaft and fit to inboard joint.

NOTE: Ensure shaft is securely retained by joint.

4. Clean front hub ball joints and mating faces of suspension arms.
5. Fit front hub to drive shaft and engage upper and lower ball joints on suspension arms.
6. Fit nuts and washers securing suspension arms to front hub and tighten to 52 Nm.
7. Connect steering rack track rod end to front hub, fit nut and tighten to 30 Nm.
8. Clean front brake disc.
9. Fit brake caliper to front hub.
10. Fit 2 bolts and washers securing brake caliper to front hub and tighten to 52 Nm.
11. Fit road wheel.
12. Position jack beneath lower suspension arm and raise front suspension.
13. Remove wedge between suspension arm and subframe.
14. Position rebound rubber and secure with screw.
15. Remove jack from beneath suspension arm.
16. Remove stand(s) and lower vehicle.
17. Fit split collar and tighten hub nut to 260 Nm.
18. Align nut to next split pin hole and fit new split pin.
