Emission canister purge valve

6. Disconnect vent pipe from emission canister.

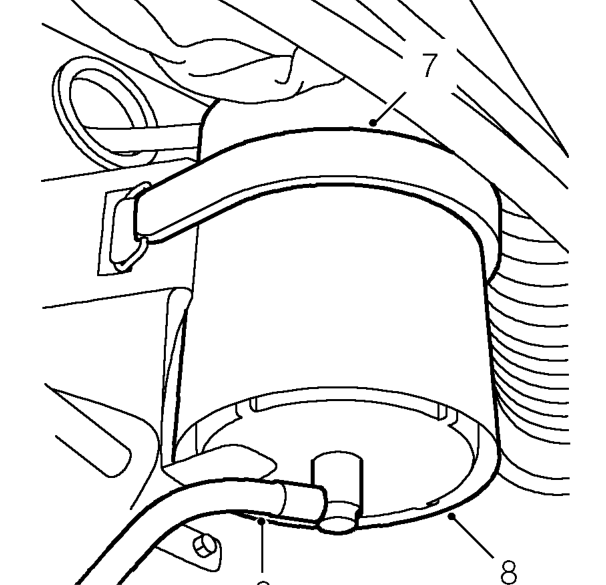

7. Release strap securing emission canister to mounting bracket beneath wing.
8. Release emission canister from mounting bracket and remove.

Refit

1. Fit emission canister to mounting bracket and secure with strap.
2. Connect vent hose to emission canister.
3. Lubricate new ’O’ ring with silicone grease and fit to purge valve.
4. Connect emission canister pipe to purge valve.
5. Secure emission canister pipe to mounting bracket with ’E’ clip.
6. Connect hose to fuel tank vent pipe and secure with clip.
7. Remove stand(s) and lower vehicle.

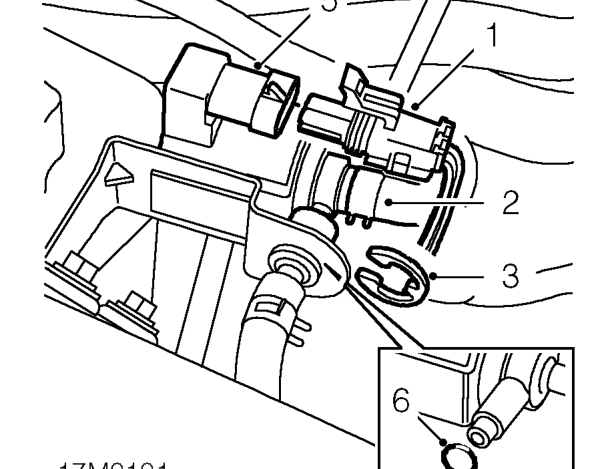

EMISSION CANISTER PURGE VALVE

Service repair no - 17.15.39

Remove

1. Disconnect multiplug from valve.
2. Release clip and disconnect purge hose from valve.
3. Remove ’E’ clip securing emission canister pipe to mounting bracket.
4. Release emission canister pipe from mounting bracket.
5. Slide purge valve from mounting bracket and remove.
6. Remove and discard ’O’ ring from valve.

Refit

1. Lubricate new ’O’ ring with silicone grease and fit to valve.
2. Fit purge valve to mounting bracket.
3. Connect emission canister pipe to valve.
4. Secure emission canister pipe to mounting bracket with ’E’ clip.
5. Connect purge hose to valve and secure with clip.
6. Connect multiplug to purge valve.
