Emission controlCatalytic converter heat shield

CATALYTIC CONVERTER HEAT SHIELD

Service repair no - 17.50.05

Remove

  1. Remove intermediate pipe heat shield. See MANIFOLD & EXHAUST SYSTEMS, Repairs.

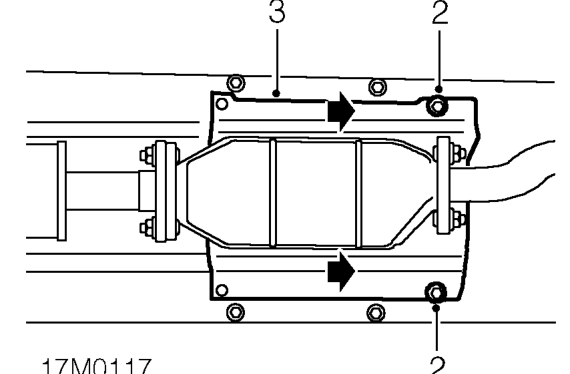

Catalytic converter heat shield – Remove intermediate pipe heat shield. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
  1. Remove 2 nuts securing catalytic converter heat shield to body.
  2. Release heat shield from studs and slide forward.
  3. Manoeuvre heat shield around exhaust pipe and remove.

Refit

  1. Manoeuvre heat shield into position and locate on studs.
  2. Fit and tighten nuts securing heat shield to body.
  3. Fit intermediate pipe heat shield. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
