Front pipe

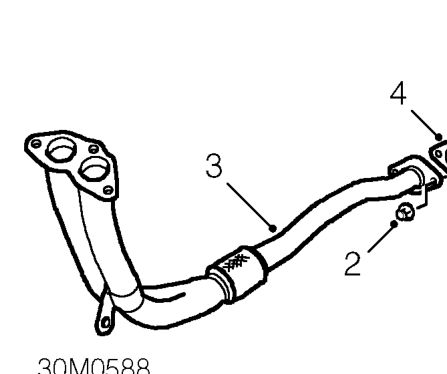

FRONT PIPE

Service repair no - 30.10.09

Remove

1. Remove front pipe to manifold gasket. See this section.

2. Remove 2 nuts securing front pipe to catalytic converter.
3. Release front pipe from catalytic converter and remove.
4. Remove and discard flange gasket.

Refit

1. Clean mating faces of front pipe and catalytic converter.
2. Fit new flange gasket to catalytic converter.
3. Fit front pipe to catalytic converter.
4. Fit nuts securing front pipe to catalytic converter and tighten to 45 Nm.
5. Fit front pipe to manifold gasket. See this section.

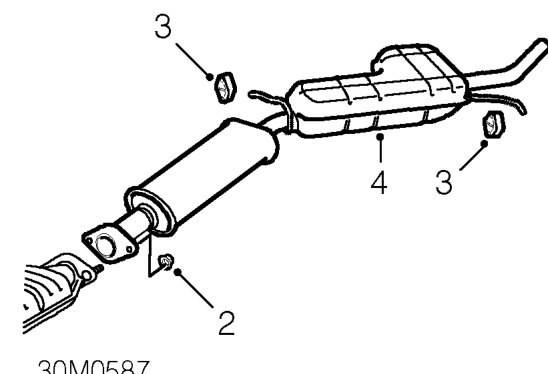

TAIL PIPE

Service repair no - 30.10.22

Remove

1. Raise vehicle on a 4 post ramp.

2. Remove 2 nuts securing tail pipe to catalytic converter.
3. Release 2 rubber mountings securing tail pipe to body.
4. Remove tail pipe.

Refit

1. Clean mating faces of catalytic converter and tail pipe.
2. Fit tail pipe to catalytic converter and secure to rubber mountings on body.
3. Fit nuts securing tail pipe to catalytic converter and tighten evenly to 9 Nm.
4. Lower vehicle.
