Front pipe to manifold gasket

FRONT PIPE TO MANIFOLD GASKET

Service repair no - 30.10.26

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

2. Disconnect battery earth lead.

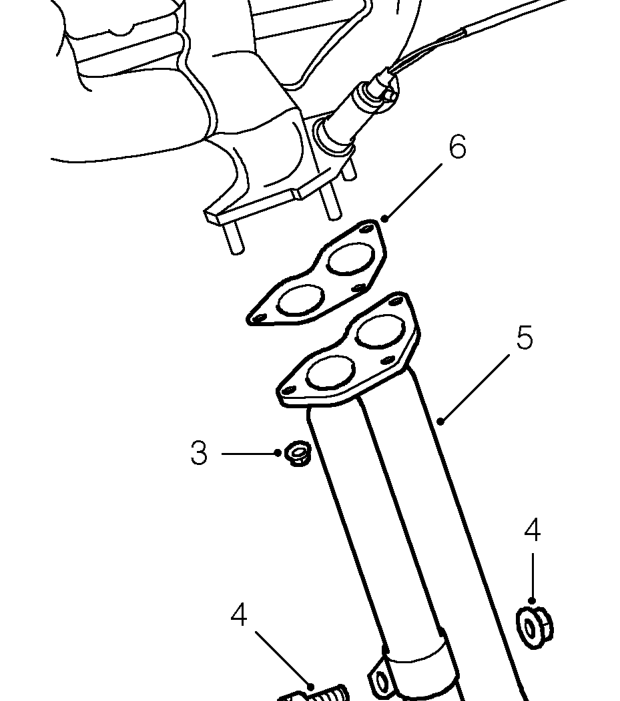

3. Remove 3 nuts securing front pipe to exhaust manifold.
4. Remove nut and bolt securing front pipe to mounting bracket on differential housing.
5. Release front pipe from exhaust manifold.
6. Remove gasket from manifold flange.

Refit

1. Clean manifold and front pipe flanges.
2. Fit new gasket to exhaust manifold flange.
3. Align front pipe to exhaust manifold.
4. Fit nuts securing front pipe to manifold and tighten to 22 Nm.
5. Align front pipe clamp to bracket on differential housing, fit nut and bolt and tighten to 22 Nm.
6. Remove stand(s) and lower vehicle.
7. Connect battery earth lead.
