INLET AND EXHAUST MANIFOLD GASKET

Service repair no - 30.15.15

Remove

  1. Disconnect battery earth lead.
  2. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
Inlet and exhaust manifold gasket – Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

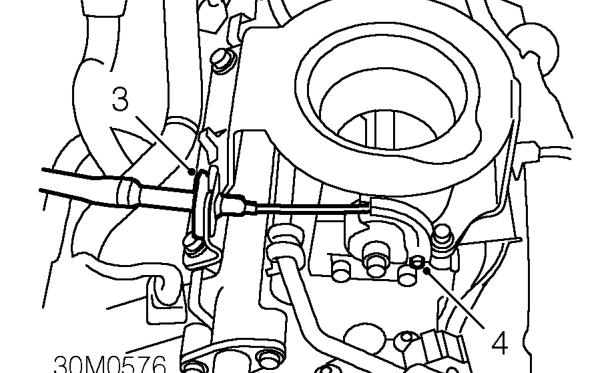

  1. Release throttle cable adjustment nut from abutment bracket.
  2. Disconnect throttle cable from throttle cam and position aside.
Inlet and exhaust manifold gasket – Disconnect throttle cable from throttle cam and position aside.

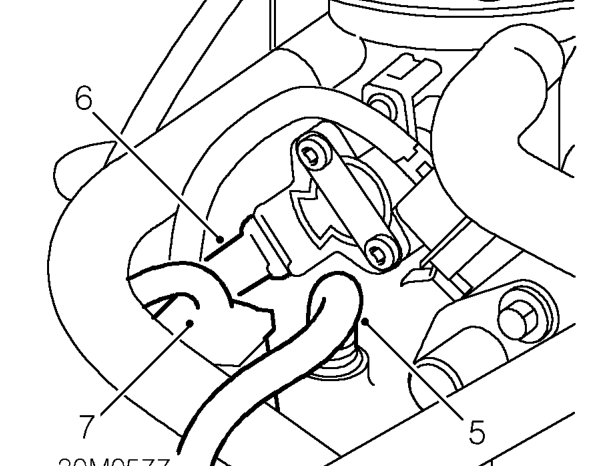

  1. Depress plastic collar on quick fit connector and disconnect brake servo vacuum pipe from inlet manifold.
  2. Disconnect multiplug from TP sensor.
  3. Disconnect multiplug from IACV.
Inlet and exhaust manifold gasket – Disconnect multiplug from IACV.

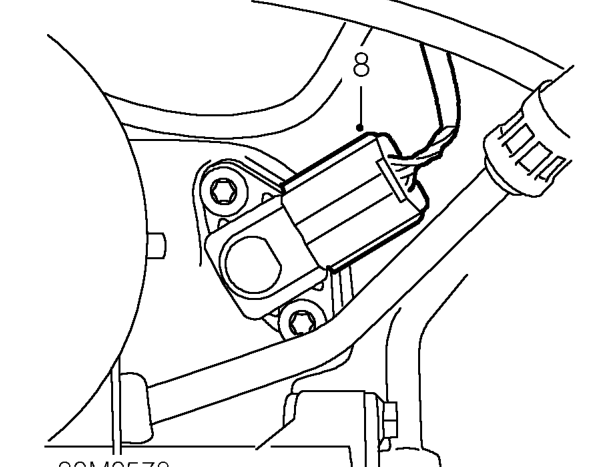

  1. Disconnect multiplug from MAP sensor.
Inlet and exhaust manifold gasket – Disconnect multiplug from MAP sensor.

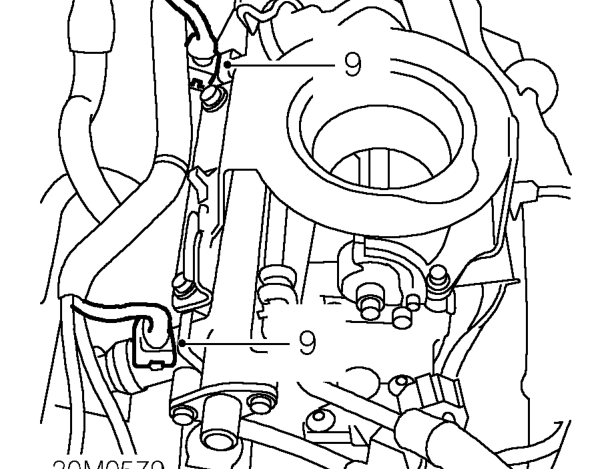

  1. Disconnect 2 multiplugs from fuel injectors.
