Mini Mini Workshop Manual (1996-2000)09 · Manifold & exhaust systems
09 · Engine

Inlet and exhaust manifold gasket (page 2 of 4)

Make
Mini
Model
Mini Workshop Manual
Year
1996–2000
Section
Repairs
Manifold & exhaust systemsInlet and exhaust manifold gasket · page 2 of 4
Diagram

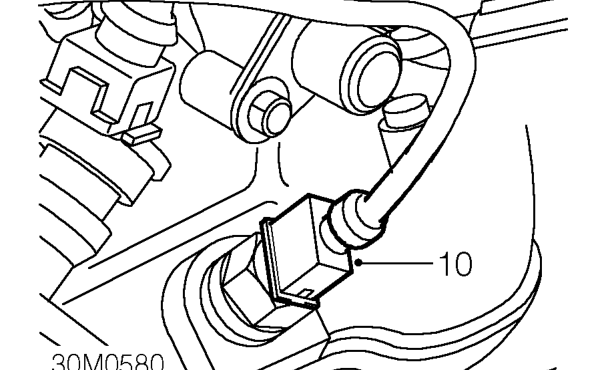

  1. Disconnect multiplug from IAT sensor.
  2. Position absorbent cloth around fuel line quick fit connectors.
Position absorbent cloth around fuel line quick fit connectors.

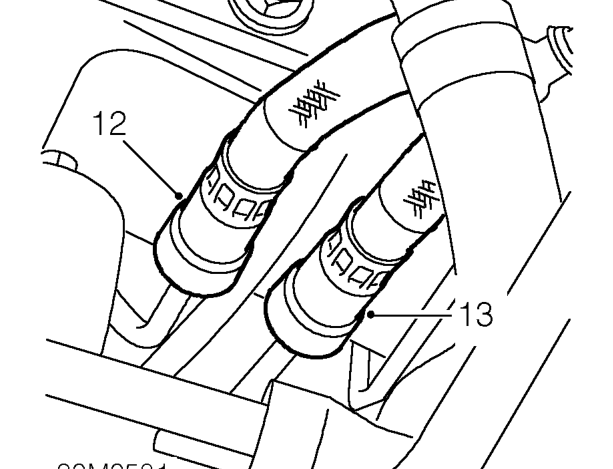

  1. Release quick fit connector and disconnect fuel return hose from fuel pipe.
  2. Release quick fit connector and disconnect fuel feed hose from fuel pipe.

CAUTION: Plug the connections.

Release quick fit connector and disconnect fuel feed hose from fuel pipe.

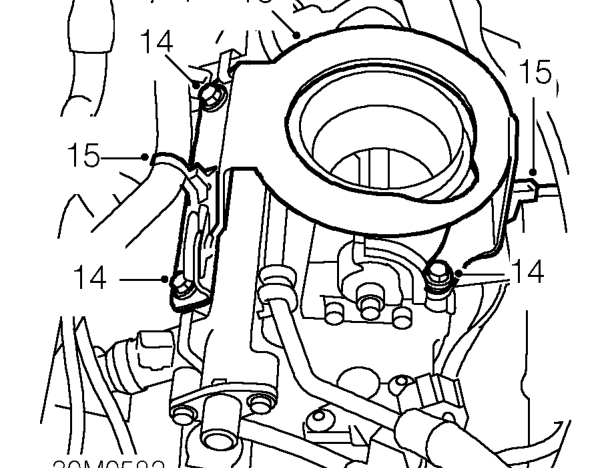

  1. Remove 3 bolts securing air cleaner mounting bracket to fuel rail and inlet manifold.
  2. Release 2 clips securing harnesses to mounting bracket.
  3. Remove air cleaner mounting bracket.
Remove air cleaner mounting bracket.

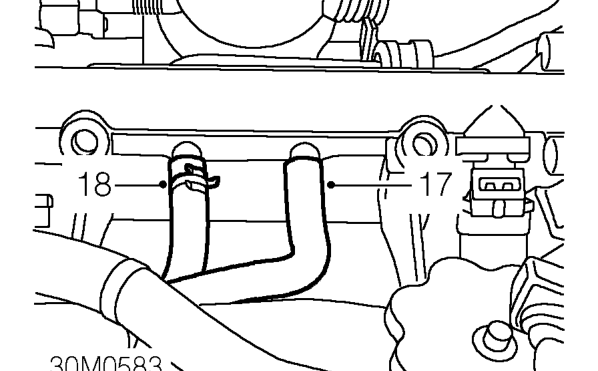

  1. Disconnect breather hose from inlet manifold.
  2. Release clip and disconnect evaporative emission canister purge hose from inlet manifold.
