Engine breather/oil separator

ENGINE BREATHER/OIL SEPARATOR

Service repair no - 17.10.03

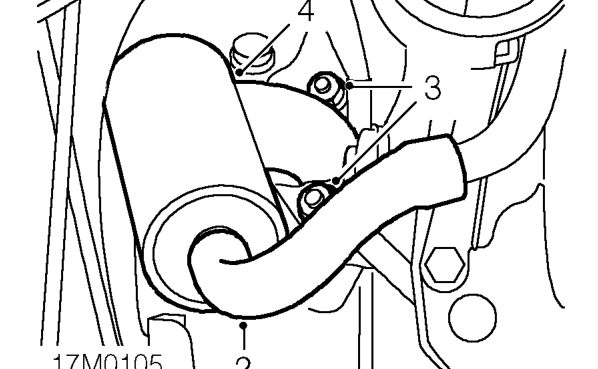

Remove

1. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

2. Disconnect breather hose from oil separator.
3. Remove 2 nuts and washers securing breather/oil separator to flywheel housing.
4. Remove engine breather/oil separator from flywheel housing.
5. Remove and discard gasket.

Refit

1. Clean mating face of breather/oil separator and flywheel housing.
2. Wash out breather/oil separator with cleaning fluid.
3. Using an air line, dry breather/oil separator.
4. Fit new gasket to flywheel housing.
5. Fit breather/oil separator to flywheel housing, fit washers and nuts and tighten to 18 Nm.
6. Connect breather hose to breather/oil separator.
7. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

EVAPORATIVE EMISSION CANISTER

Service repair no - 17.15.13

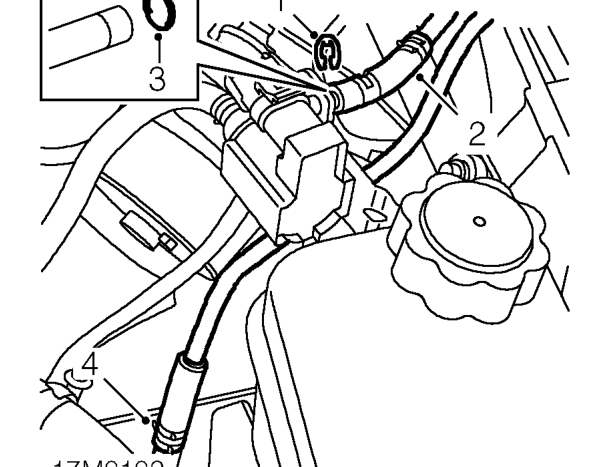

Remove

1. Remove ’E’ clip securing emission canister pipe to mounting bracket.
2. Release emission canister pipe from mounting bracket.
3. Remove and discard ’O’ ring from valve.
4. Release clip and disconnect hose from fuel tank vent pipe.
5. Raise front of vehicle.

WARNING: Support on safety stands.
