Restraint systemsAirbag and pre-tensioner, manual deployment · page 2 of 2

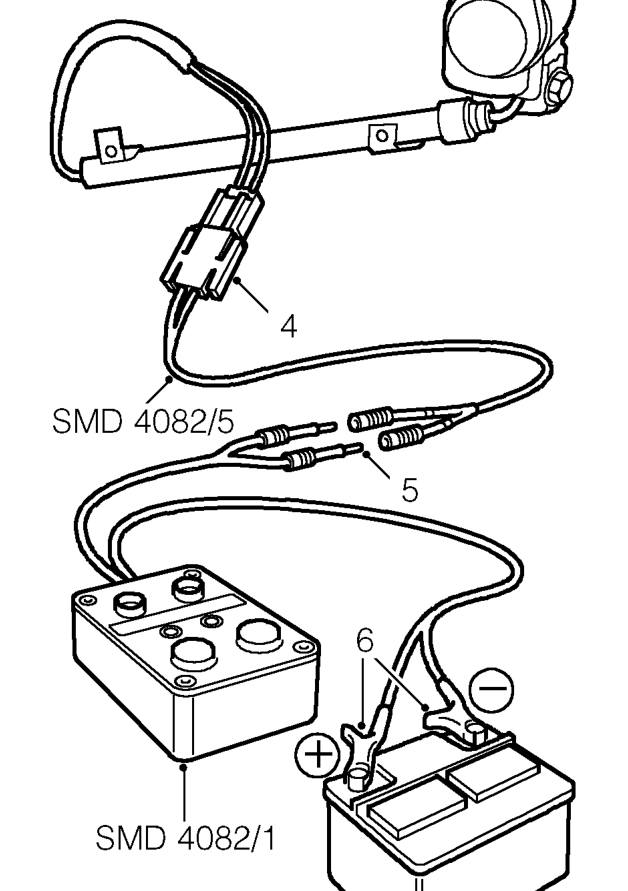

- Connect flylead SMD 4082/5 to pre-tensioner connector.
- Connect flylead SMD 4082/5 to tool SMD 4082/1.
- Connect tool SMD 4082/1 to battery.
WARNING: Ensure all personnel are standing at least 15 metres away from vehicle.

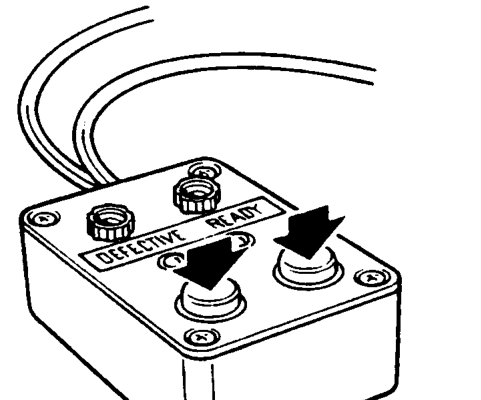

- Press both operating buttons to deploy pre-tensioner.
- DO NOT return to the vehicle for 5 minutes.
- Using gloves, remove pre-tensioner from body, place pre-tensioner in plastic bag, and seal bag.
- Transport deployed pre-tensioner to designated area for incineration.
NOTE: DO NOT transport pre-tensioner in the vehicle passenger compartment.
