Warning labels (page 2 of 2)
- Make
- Mini
- Model
- Mini Workshop Manual
- Year
- 1996–2000
- Section
- Precautions
Restraint systemsWarning labels · page 2 of 2

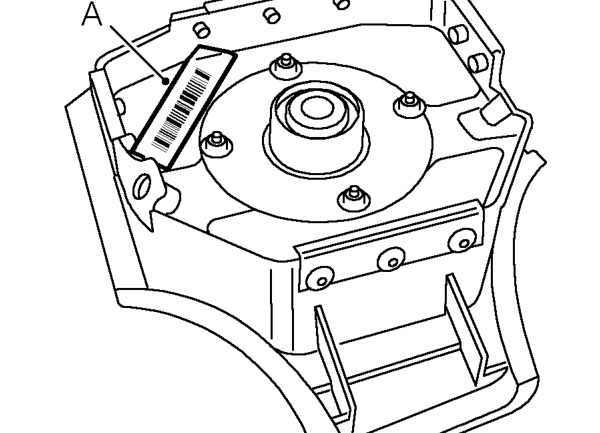

- Airbag module
A - ROVER Part Number/Bar code - If the airbag module is to be replaced, the code must be recorded and quoted for ordering purposes.

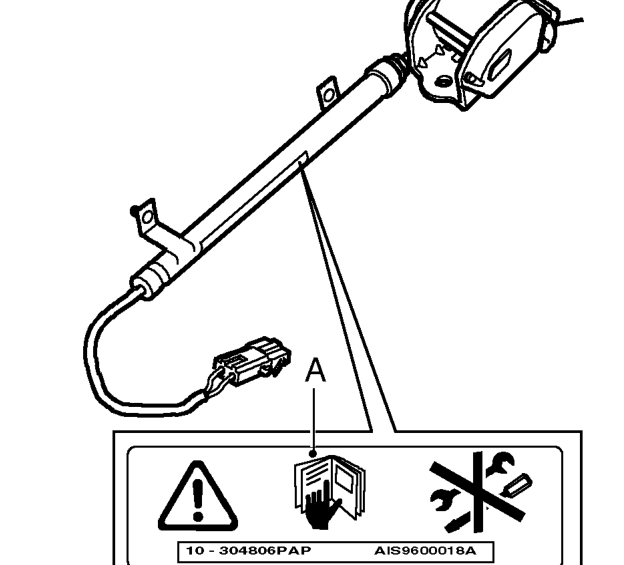

- Seat belt pre-tensioner
A - Refer to the Workshop Manual for detailed instructions. DO NOT attempt to disassemble.

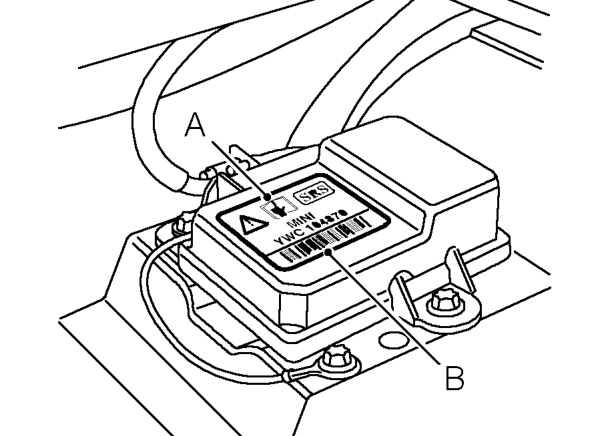

- Diagnostic control unit.
A - Refer to the Workshop Manual for information on the airbag system. B - ROVER Part Number/Bar Code - If the airbag diagnostic control unit is to be replaced, the code must be recorded and quoted for ordering purposes.
