Cowl: Diagrams

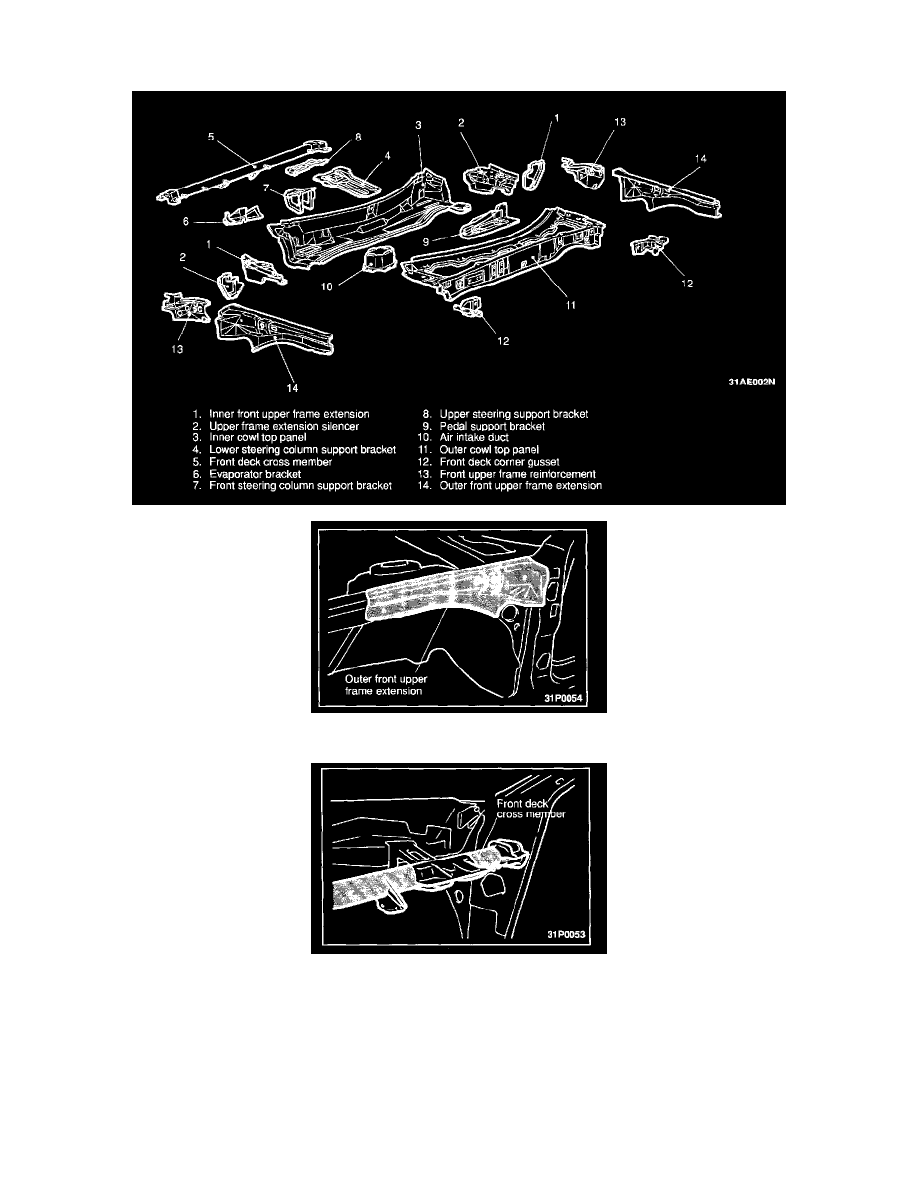

FRONT DECK

1. A large outer front upper frame extension increases the joint rigidity with a front pillar and a fender shield.

2. A highly rigid front deck cross member which passes into the pillar increases the support rigidity of the steering wheel. This construction is

designed to prevent the steering wheel to cave in during a head-on collision increasing the chances of survival for the driver.
