FE120 L4-4.9L DSL Turbo (2005)
Inspection: Tension of V-belts
-

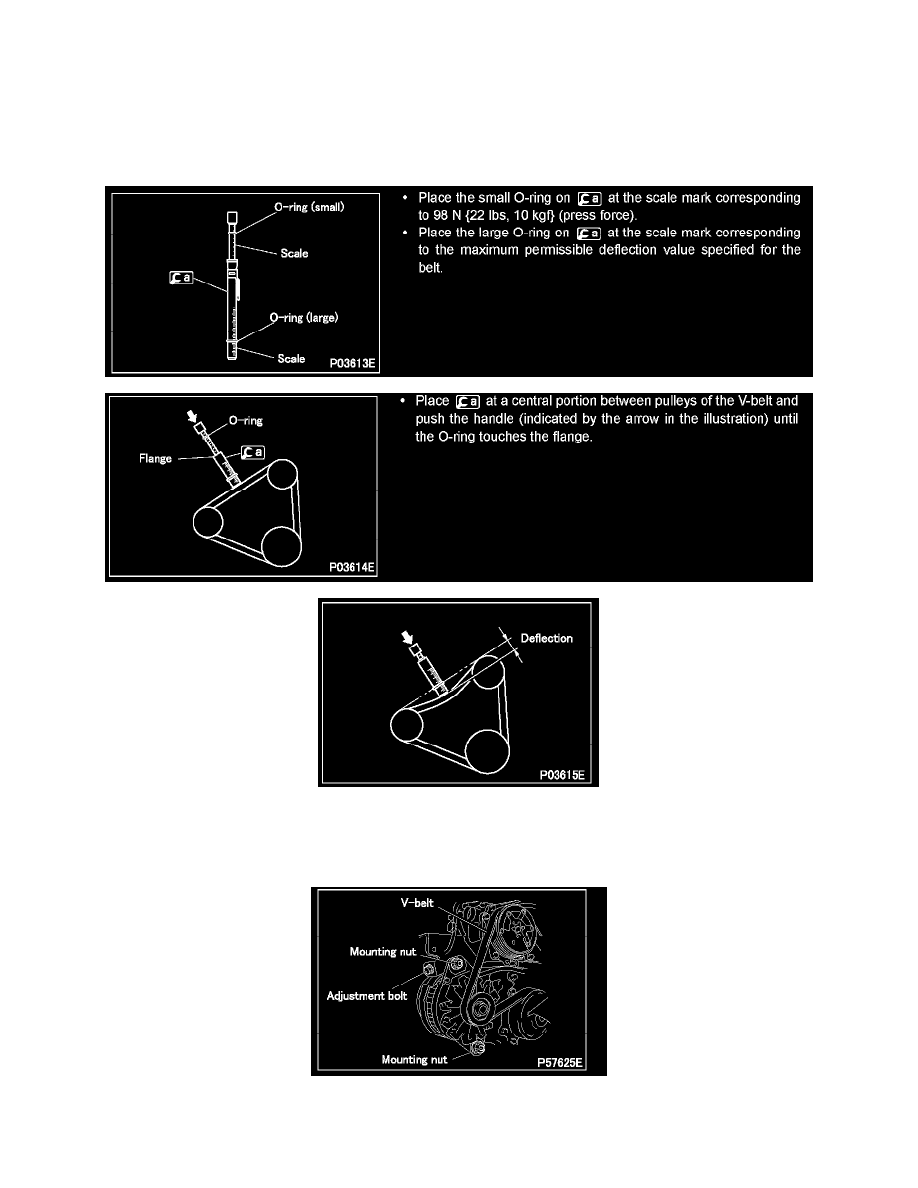

Press each V-belt at a central portion between pulleys with a force of approximately 98 N {22 lbs, 10 kgf} as shown in the illustration and measure
the amount of deflection of the belt.
A: Alternator pulley
B: Air conditioner compressor pulley or tension pulley
C: Fan pulley
D: Water pump pulley
-
Measure the amount of deflection of the V-belt.
-
If the measured value deviates from the standard value range, adjust the tension of the belt as follows.
Adjustment of V-belt
1. Vehicles with air conditioner
-
Loosen the alternator mounting nuts (2 locations) and adjust the tension of the V-belt by tightening or loosening the adjustment bolt.
-
After the adjustment is completed, retighten the mounting nuts firmly.
