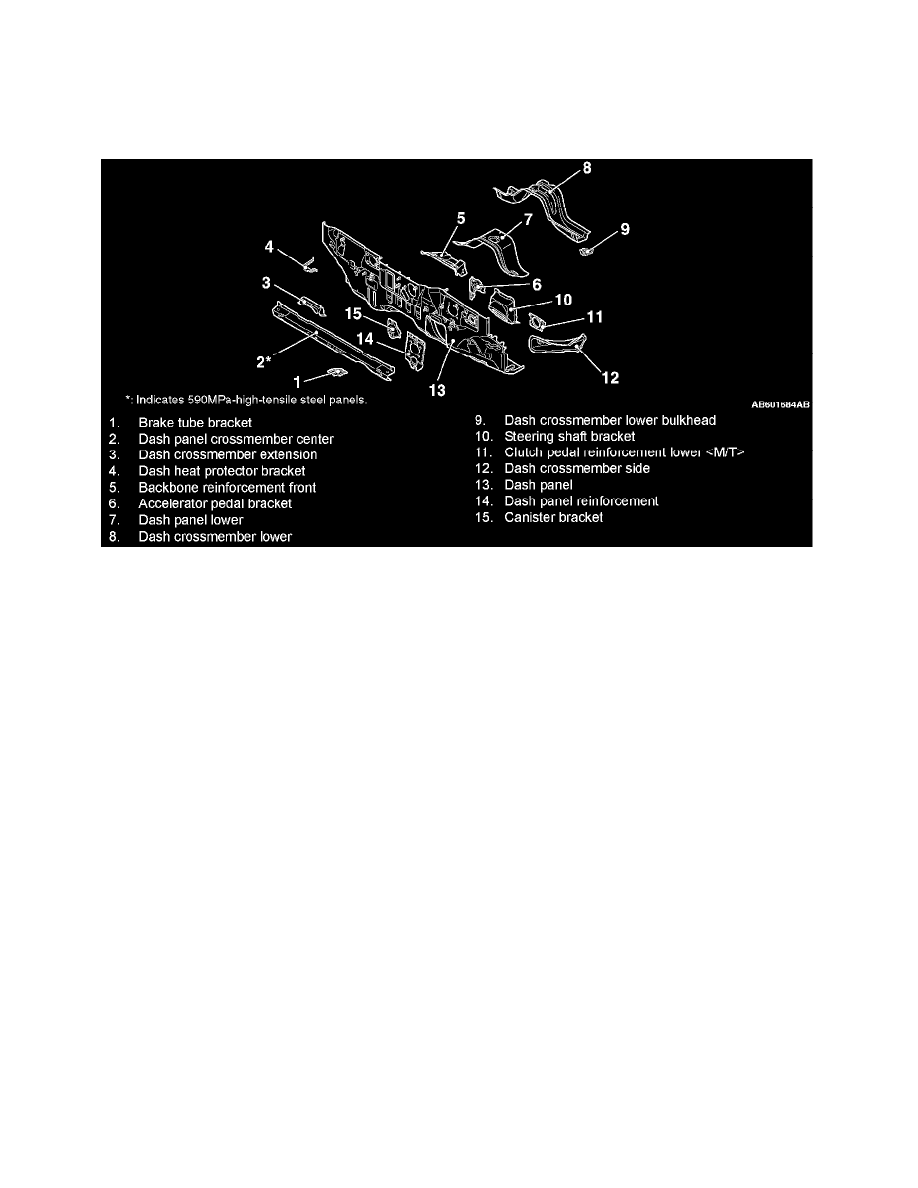

Firewall: Diagrams
DASH PANEL
-
The front frame structure is supported in three directions by the dash crossmember center dash crossmember lower and front sidemember rear in
order to improve the frontal collision characteristics and increase the vehicle body rigidity.
-
The 590-MPa class high tensile strength steel panels have been adopted for the dash panel crossmember center to improve the body rigidity.
