Lancer L4-2.4L (4B12) (2009)

Page 1
background image

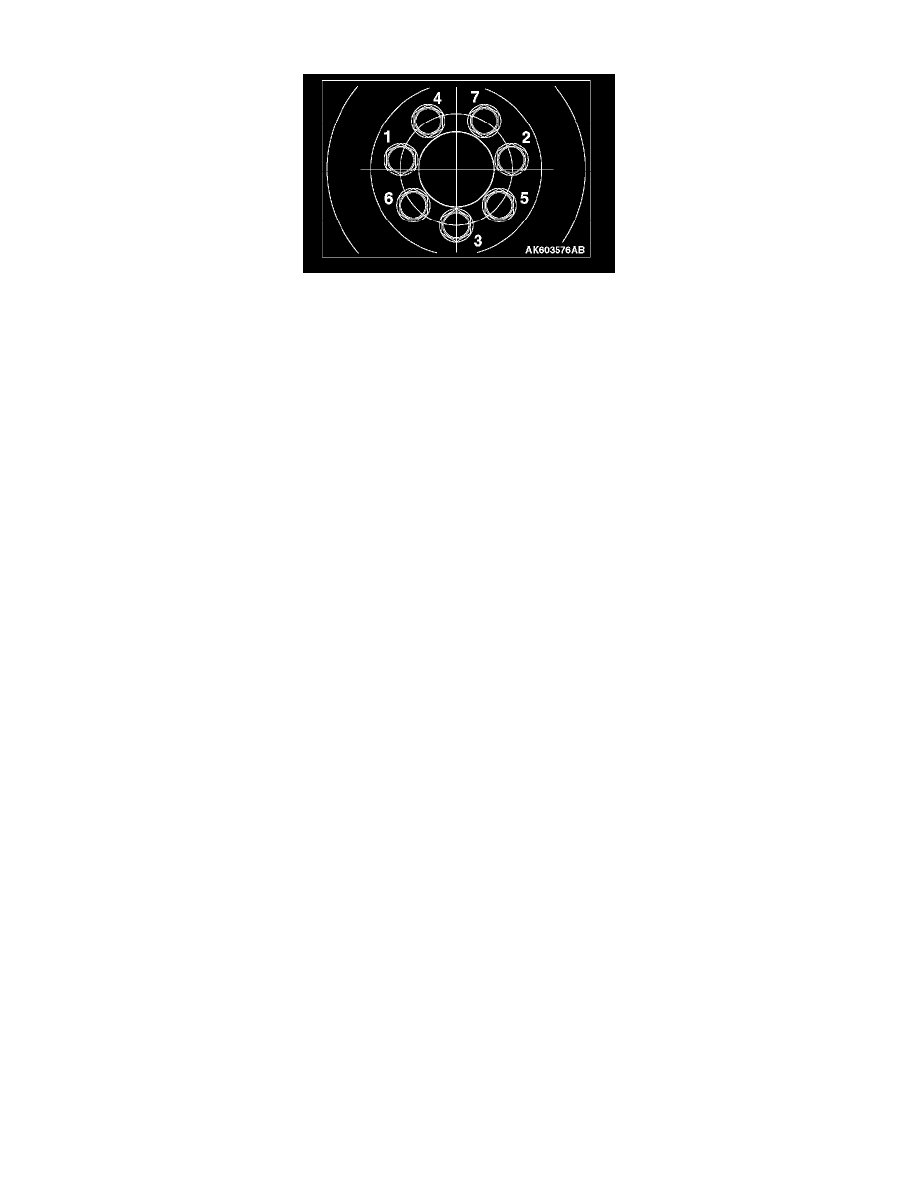

Flywheel: Specifications

Drive plate bolt or Flywheel bolt - First pass ................................................................................................................................................   40 Nm 32 ft-lb
Drive plate bolt or Flywheel bolt - Final Pass .............................................................................................................................................   130 Nm 95 ft-lb
