Accessory Relay|Locations|Page 9914 > < Electrical - Information For Electrical Ground Repair|Page 9909

G8 V8-6.0L (2009)

  • Power and Ground Distribution
  • Accessory Relay
  • Component Information
  • Locations

Page 1
background image

Accessory Relay: Locations

Electrical Center Identification Views

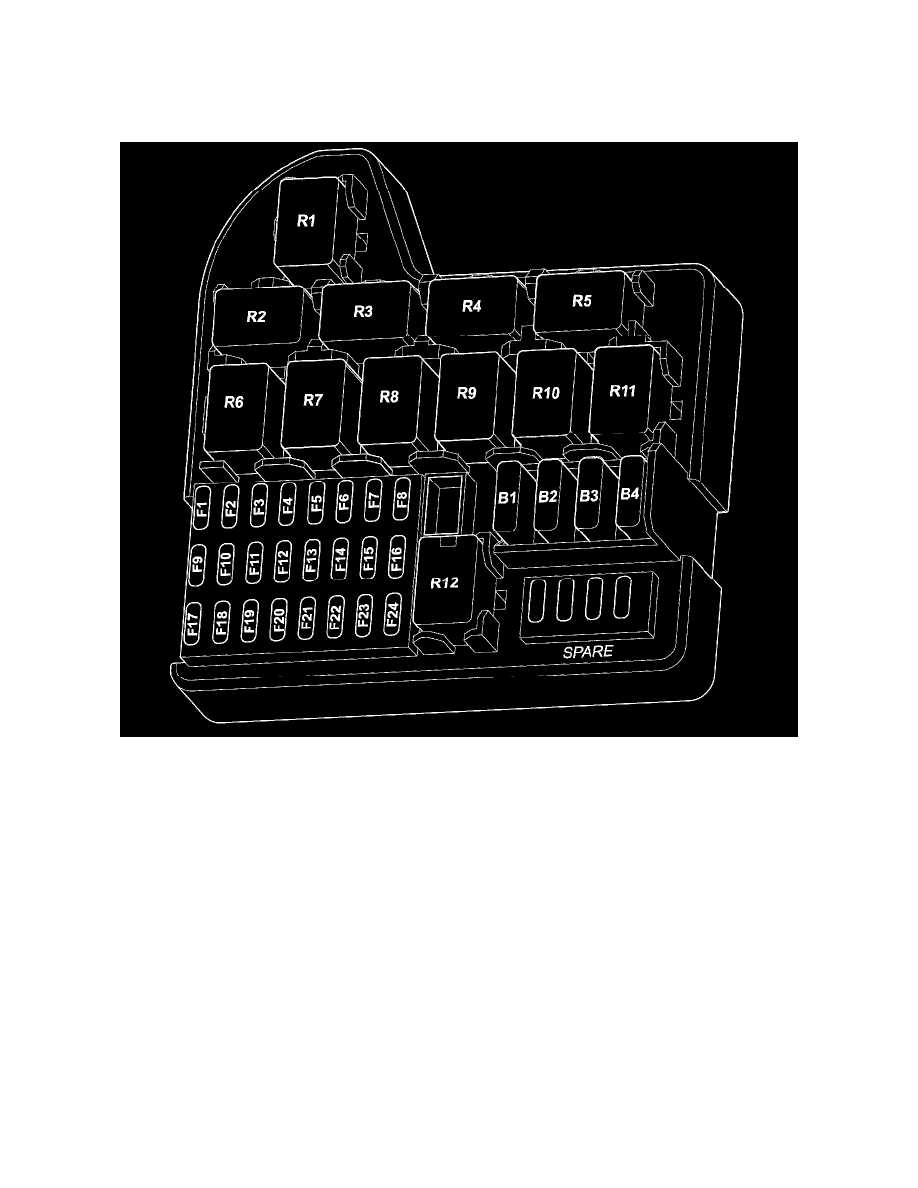

Fuse Block - I/P

  • Power and Ground Distribution
  • Accessory Relay
  • Component Information
  • Locations

Accessory Relay|Locations|Page 9914 > < Electrical - Information For Electrical Ground Repair|Page 9909
