Body dimensions › Diagonal dimensions

InformationDiagonal dimensions

DIAGONAL DIMENSIONS

Location	Dimension	Reference

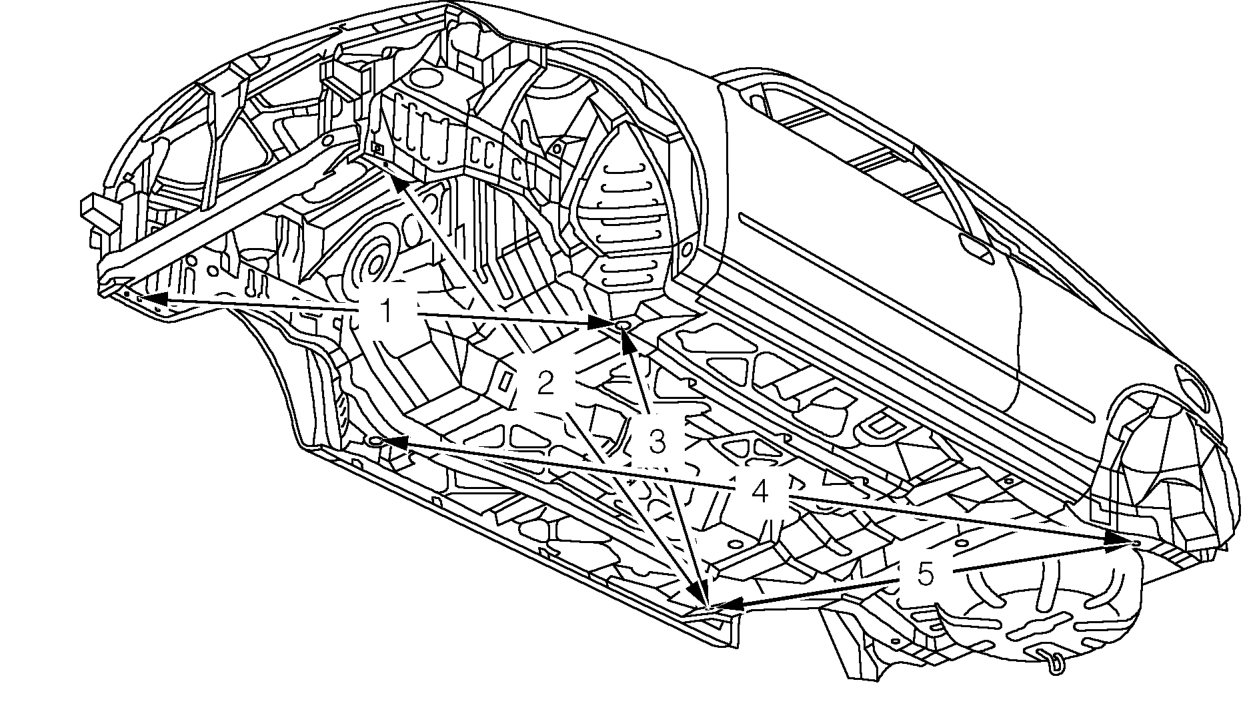

Front sidemember jig hole to opposite sidemember to sill jig hole Front sidemember jig hole to opposite rear longitudinal front jig hole Sidemember to sill jig hole to opposite rear longitudinal front jig hole Sidemember to sill jig hole to opposite rear longitiudinal rear jig hole Rear longitudinal front jig hole to opposite rear jig hole	1319mm ± 0mm 2679mm ± 0mm 1894.5mm ± 3mm 2571mm ± 0mm 1361mm ± 0mm	1 2 3 4 5

All dimensions taken at centre line of set screw, set screw hole or jig hole. Diagonal dimensions are taken in the horizontal plane.
