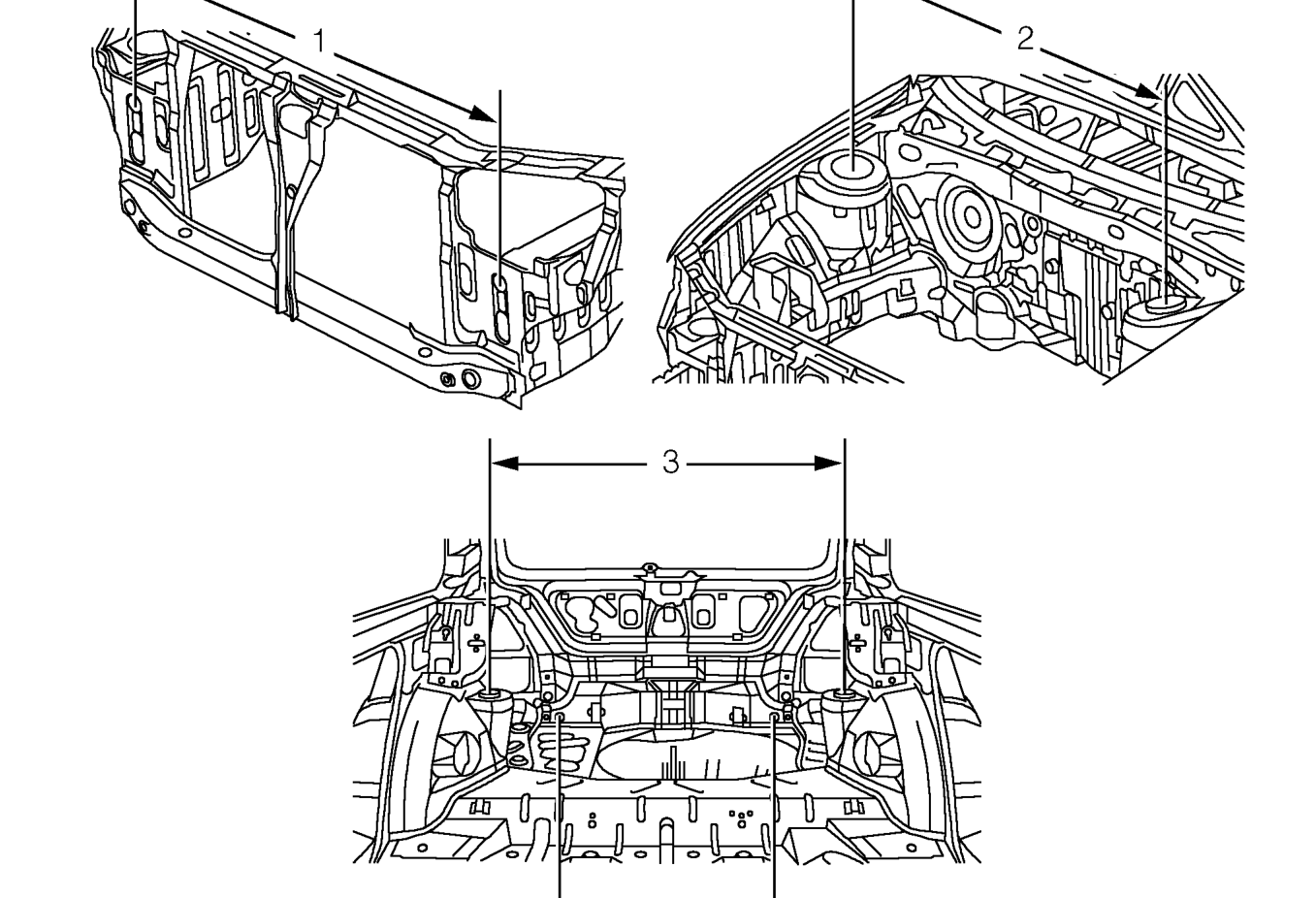

TRANSVERSE DIMENSIONS
| Location | Dimension | Reference |
|---|---|---|
| Headlamp mounting jig hole right hand to left hand Front suspension reinforcement right hand to left hand Rear damper mount right hand to left hand Rear body jig hole right hand to left hand | 800mm ± 2mm 1123mm ± 2.0mm 1118.8mm ± 3.0mm 780mm ± 2.0mm | 1 2 3 4 |
All dimensions taken at centre line of set screw, set screw hole or jig hole.
