Transverse Dimensions - continued
- Make
- Rover
- Model
- 200 Body Repair Manual
- Year
- 1995–1999
- Section
- Body dimensions › Transverse Dimensions - continued
InformationTransverse Dimensions - continued

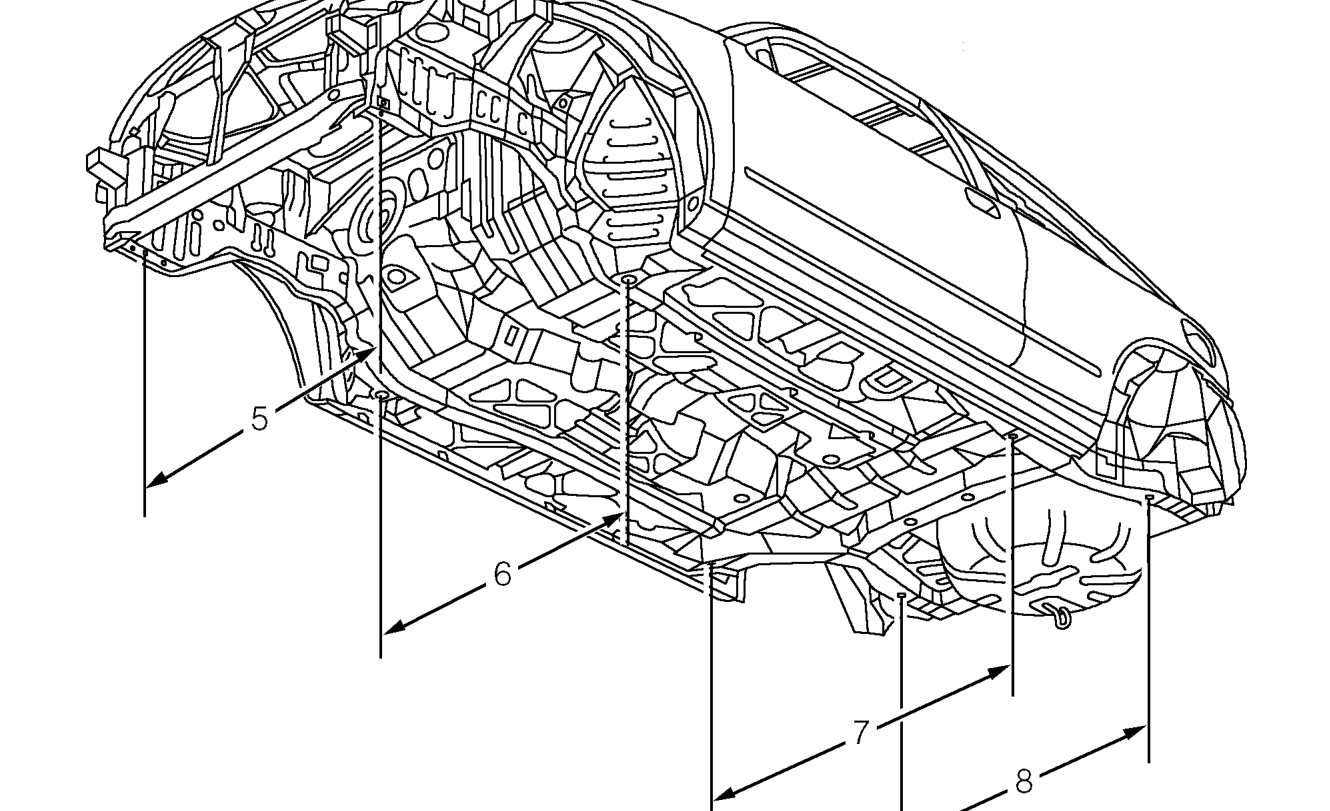

Transverse Dimensions - continued
| Location | Dimension | Reference |
|---|---|---|
| Front sidemember jig hole right hand to left hand Sidemember to sill jig hole right hand to left hand Rear longitudinal front jig hole right hand to left hand Rear longitudinal rear jig hole right hand to left hand | 912mm ± 3.0mm 970mm ± 2.0mm 1180mm ± 3.0mm 1000mm ± 2.0mm | 5 6 7 8 |
All dimensions taken at centre line of set screw, set screw hole or jig hole.
