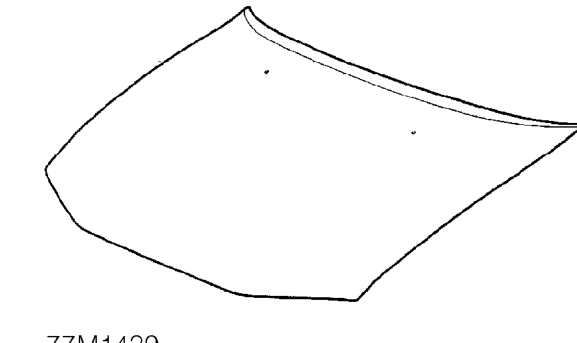

Bonnet Assembly

Bonnet Assembly

The bonnet assembly is serviced without hinges which are available separately.

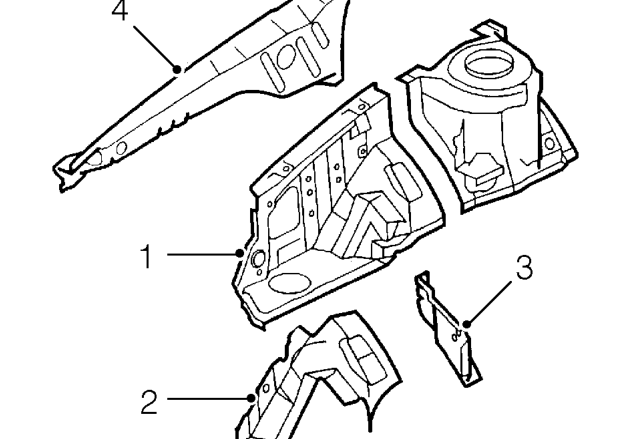

Valance

Valances are serviced with front valance assembly (1), reinforcement (2) and RH tie-bar gusset (3). Valance reinforcement members are serviced separately (4).

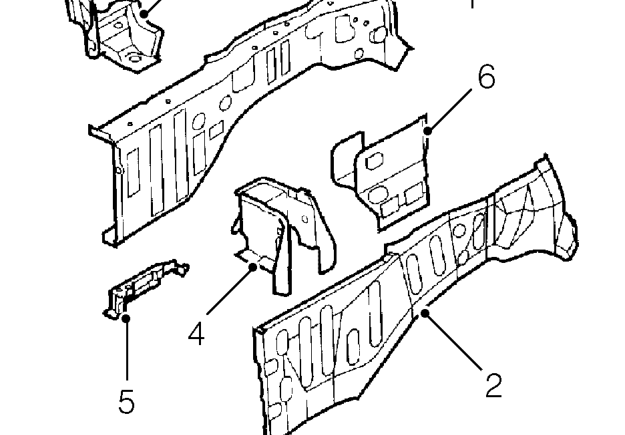

Sidemember Assembly

Sidemembers are serviced either as an assembly or as separate front sidemember (1), sidemember closing (2), engine mounting brackets (3, 4), front sidemember bracket (5) and sidemember to sill (6).

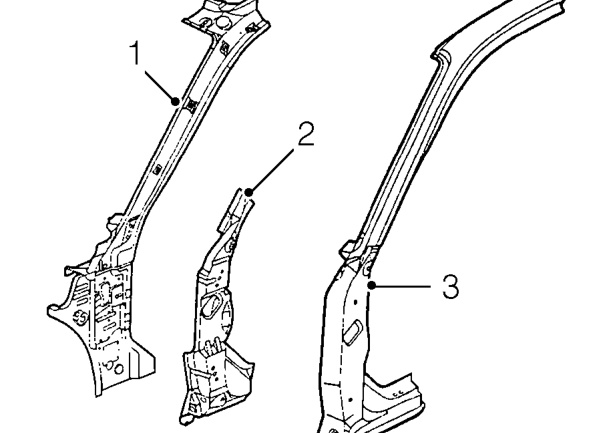

’A’ Post

’A’ posts are serviced as closing assembly (1), reinforcement assembly (2) and body side ’A’ post (3).
