Rover 200 Body Repair Manual (1995-1999)06 · Panel repairs
06 · General

Rear Body Assembly

Make
Rover
Model
200 Body Repair Manual
Year
1995–1999
Section
Panels › Rear Body Assembly
Panel repairsRear Body Assembly

Rear Body Assembly

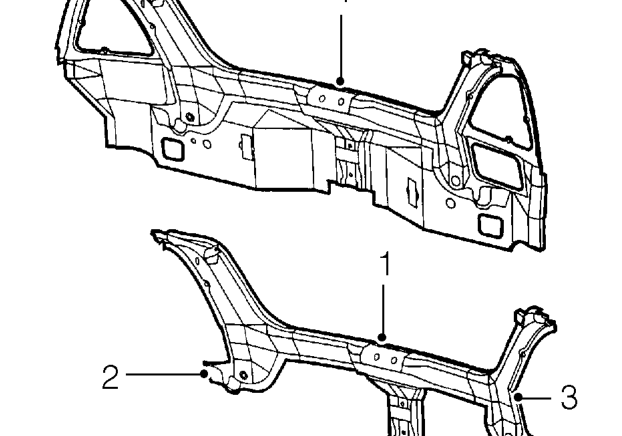

Rear body assembly

Rear body parts are serviced as an assembly (4) and also as separate rear body reinforcement assembly (1) with reinforcements (2, 3).

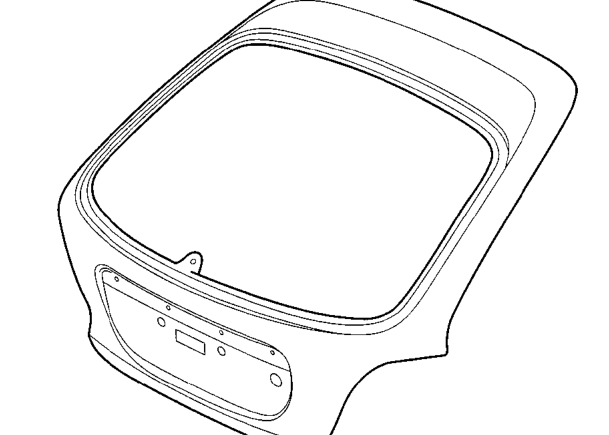

Tailgate

Tailgate – Rear body parts are serviced as an assembly (4) and also as separate rear body reinforceme

The tailgate is serviced as an assembly without hinges, which are available separately.

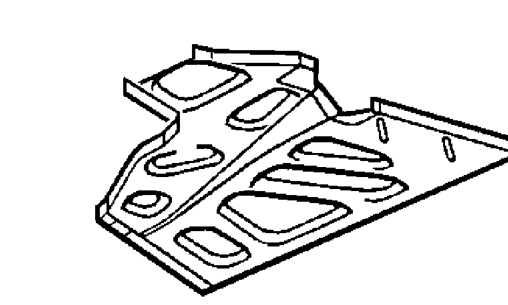

Load Floor Side

Load floor side – The tailgate is serviced as an assembly without hinges, which are available separately.

Load floor sides are serviced as separate panels.
