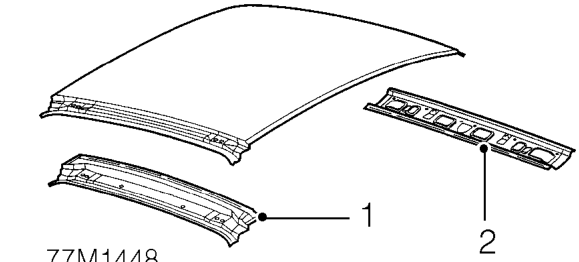

Roof Panel Assembly

Roof Panel Assembly

Roof panels are serviced as an assembly including front and rear header assemblies (1, 2), which are also available as separate items.

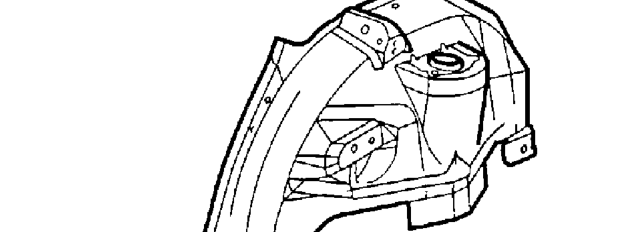

Rear Inner Wheelarch

Inner rear wheelarches are available separately.

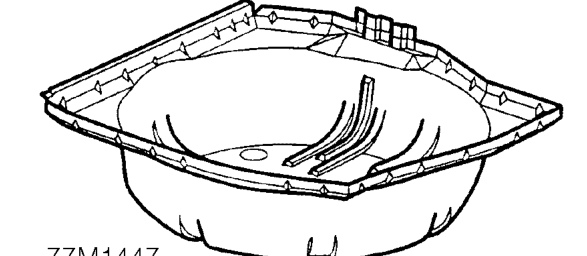

Spare Wheel Well Assembly

The spare wheel well assembly is serviced either as a separate part or as part of a rear floor assembly.

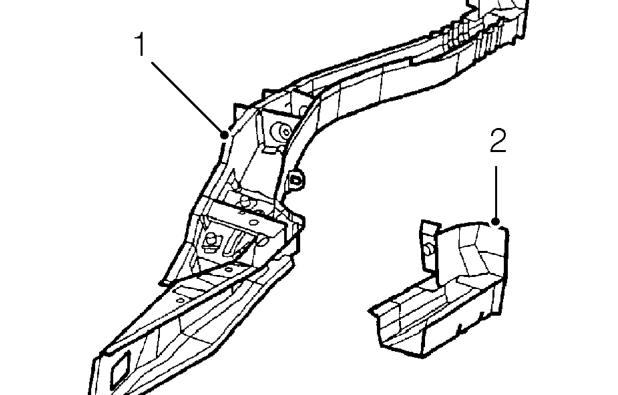

Rear Longitudinal Member

Rear longitudinal members are serviced either as separate items (2) or as part of a longitudinal member assembly (1).
