Deployment of driver airbag module (page 2 of 2)

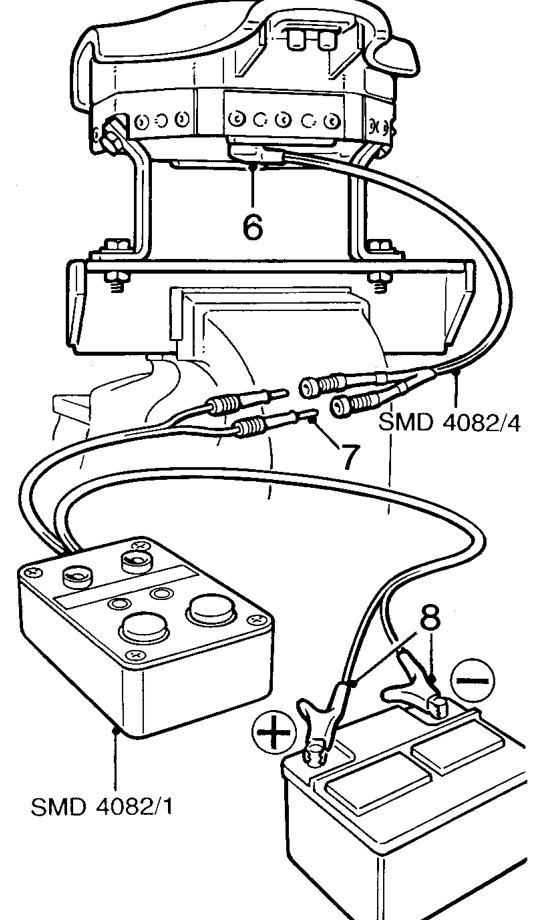

6. Connect flylead SMD 4082/4 to airbag module.
7. Connect flylead SMD 4082/4 to tool SMD 4082/1.

WARNING: Do not lean over airbag module whilst connecting.

8. Connect tool SMD 4082/1 to battery.

WARNING: Ensure all personnel are standing at least 15 metres away from module.

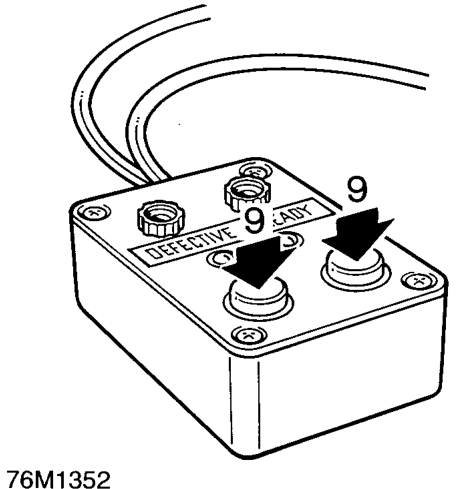

9. Press both operating buttons to deploy airbag module.
10. DO NOT return to airbag module for 30 minutes.

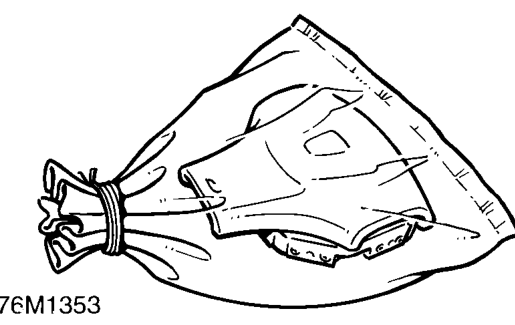

11. Using gloves and face mask, remove airbag module from tool, place airbag module in plastic bag, and seal bag.
12. Wipe down tool with damp cloth.
13. Transport deployed airbag module to designated area for incineration.

NOTE: DO NOT transport airbag module in the vehicle passenger compartment.

14. Scrap all remaining parts of airbag system. DO NOT re-use or salvage any parts of the airbag system.
