Driver airbag

DRIVER AIRBAG

Service repair no - 76.73.71

CAUTION: • Replace the airbag every 10 years. • Do not install used SRS parts from another car. When repairing an SRS system, always use genuine new Rover parts. • Carefully inspect the airbag assembly before installing it. Do not install an airbag assembly that shows signs of being dropped or improperly handled, such as dents, cracks, or deformation. • Do not try to disassemble, or tamper with the airbag assembly. • Special bolts are necessary for installing the airbag assembly. Do not use other bolts.

Remove

1. Remove key from starter switch and wait 10 minutes to allow SRS back-up power circuit to discharge before commencing work.
2. Disconnect both battery leads, earth lead first.

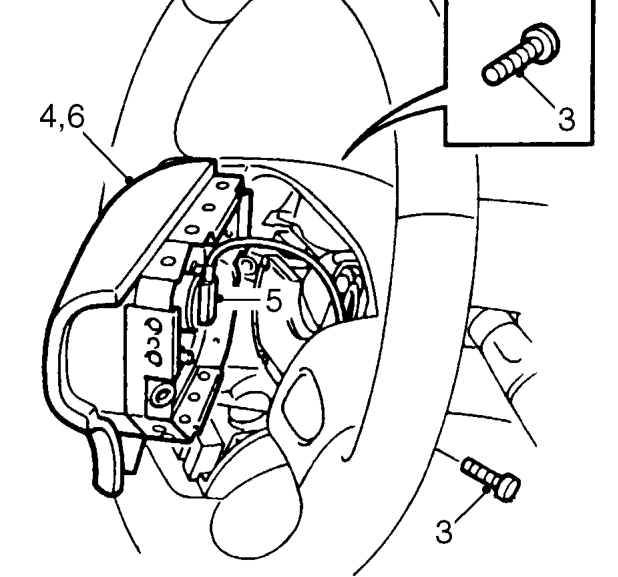

3. Remove 2 Torx bolts securing the air bag module to steering wheel.
4. Release air bag module from steering wheel.

CAUTION: Do not allow the air bag module to hang by the air bag harness.

5. Disconnect harness connector from air bag module.
6. Remove air bag module.

CAUTION: Store the air bag module in accordance with the storage procedures outlined in the precautions part of this section.

NOTE: If airbag is to be replaced, bar code of new airbag must be recorded.

Refit

1. Position air bag module and make connection with harness upwards as shown in illustration.
2. Fit air bag to steering wheel and hand start the 2 Torx screws. Tighten screws to 9 Nm.
3. Connect battery leads, earth lead last.
4. Carry out system check by turning the ignition on and checking that the SRS warning light illuminates then extinguishes after 3 seconds.
