Airbag harness

Refit

CAUTION: Ensure unit and bracket faces are clean and free from burrs. An incorrectly mounted unit could cause the system to malfunction.

1. Position unit, fit NEW Torx screws and tighten to 9 Nm.
2. Connect multiplug.
3. Fit bolt securing earth lead to body.
4. Fit unit cover and secure with scrivets.
5. Connect both battery leads, earth lead last.
6. Carry out system check by turning the ignition on and checking that the SRS warning light illuminates then extinguishes after 3 seconds.

AIRBAG HARNESS

Service repair no - 76.73.73

Remove

CAUTION:

• Do not install used SRS parts from another car. When repairing an SRS, use only genuine new Rover parts. • Never attempt to modify, splice, or repair SRS wiring.

NOTE: SRS wiring can be identified by its yellow or black with yellow stripe outer protective covering.

1. Remove key from ignition switch and wait 10 minutes to allow SRS back-up power circuit to discharge before commencing work.
2. Disconnect both battery leads, earth lead first.
3. Remove passenger airbag harness. See this section.
4. Remove drivers airbag. See this section.

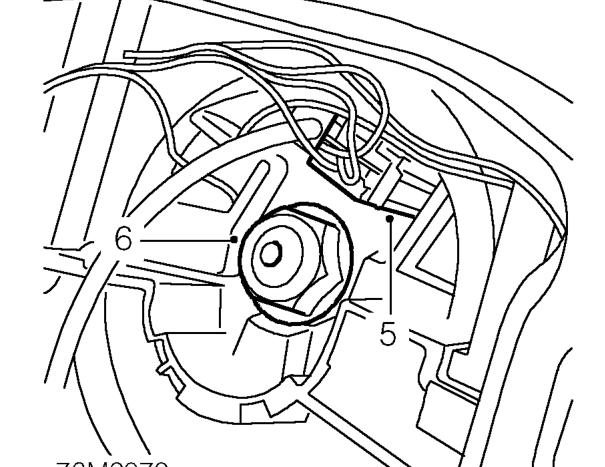

5. Disconnect horn multiplug from rotary coupler.
6. Remove nut securing steering wheel to column and remove wheel.
