FRONT SEAT BELT AND PRE-TENSIONER - 5 DOOR

Service repair no - 76.73.13

CAUTION: See safety precautions in SRS section before starting work.

Remove

  1. Disconnect battery earth lead.
  2. Remove ’B’ post lower trim casing. See BODY, Interior trim components.
Front seat belt and pre-tensioner - 5 door – Remove ’B’ post lower trim casing. See BODY, Interior trim components.

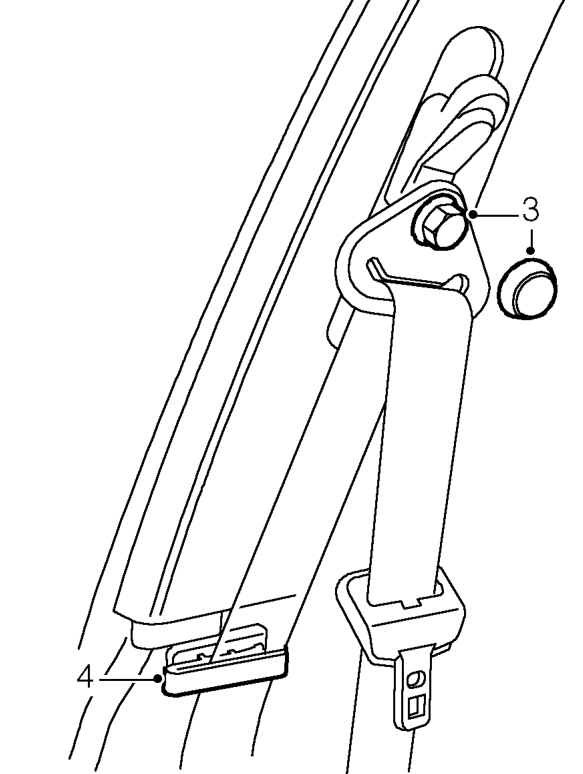

  1. Remove seat belt upper bolt cover and remove bolt.

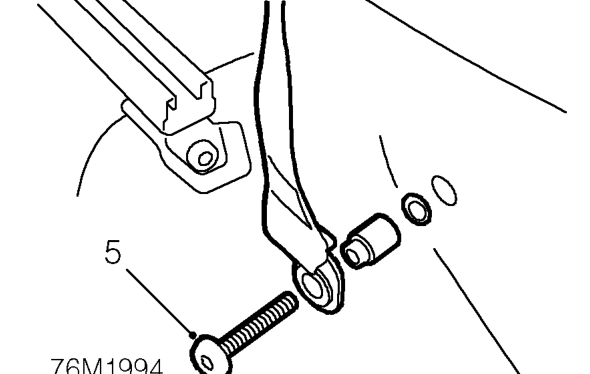

  2. Release seat belt guide from ’B’ post.
Front seat belt and pre-tensioner - 5 door – Release seat belt guide from ’B’ post.

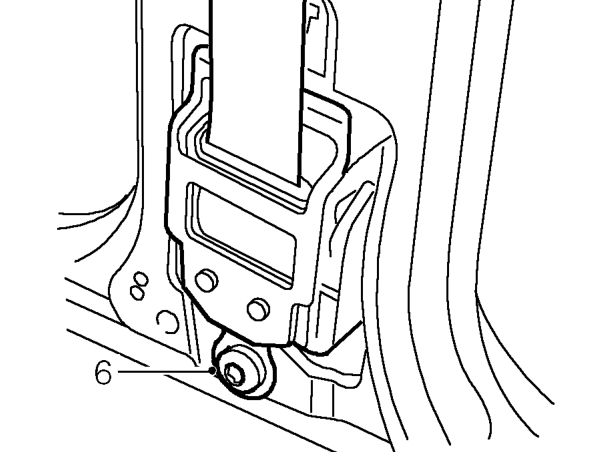

  1. Remove seat belt lower Torx bolt.
Front seat belt and pre-tensioner - 5 door – Remove seat belt lower Torx bolt.
  1. Remove bolt securing seat belt reel to ’B’ post and remove reel.
  2. Remove front seat. See BODY, Seats and seat belts.
