Rover 200 Body Repair Manual (1995-1999)04 · Restraint systems
04 · Body & interior

Airbag harness (page 3 of 4)

Make
Rover
Model
200 Body Repair Manual
Year
1995–1999
Section
Repairs
Restraint systemsAirbag harness · page 3 of 4
Diagram

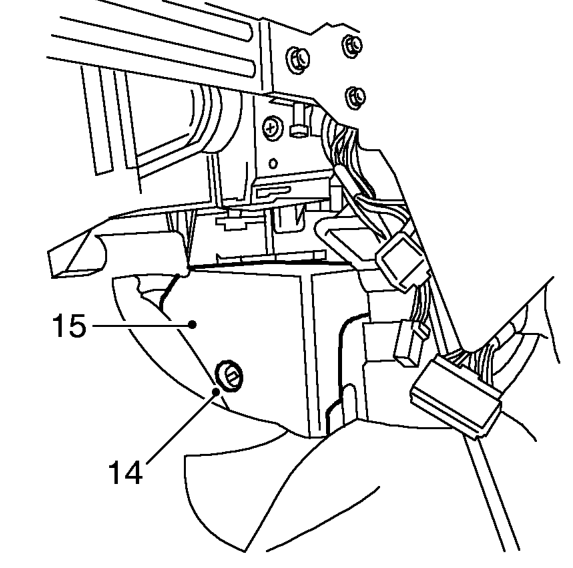

  1. Remove 2 scrivets securing SRS control unit cover.
  2. Remove cover from SRS control unit.
Remove cover from SRS control unit.

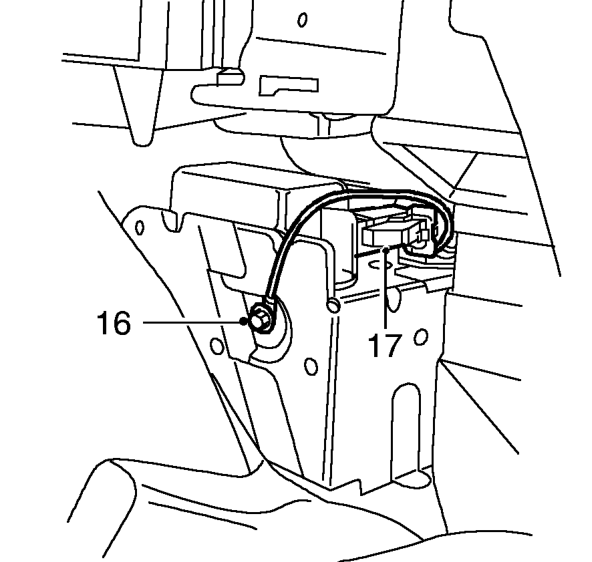

  1. Remove bolt securing earth lead to body.
  2. Disconnect multiplug from SRS control unit.
  3. Remove both front seats. See BODY, Seats and seat belts.
Remove both front seats. See BODY, Seats and seat belts.

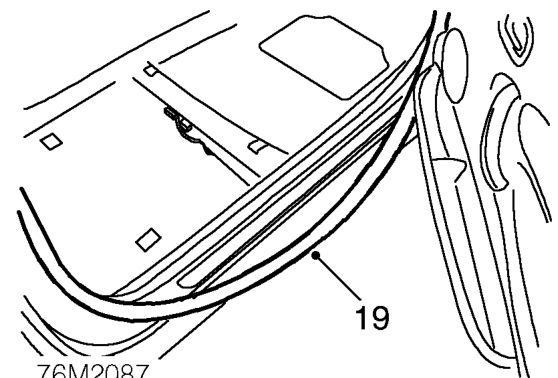

  1. Release seals from bottom of both front door apertures.
  2. Move floor carpets aside to gain access to seat belt pre-tensioner harnesses.
