Automatic gearboxSelector cable

SELECTOR CABLE

Service repair no - 44.30.04

Adjust

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Move gear selector lever to position ’P’.

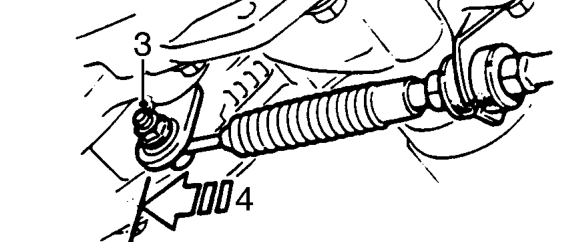

Selector cable – Move gear selector lever to position ’P’.
  1. Loosen nut securing selector cable rod to selector lever.
  2. Push selector lever fully forwards.
  3. Ensure the park mechanism is engaged by trying to rotate both front wheels.
  4. Tighten nut securing selector cable rod to selector lever to 7 Nm.
  5. Remove stand(s) and lower vehicle.
  6. Check that vehicle will only start in position ’P’ and ’N’.
  7. Check that forward drive is achieved in position ’D’ and ’L’, and reverse drive in position ’R’.
