MASTER CYLINDER COMPONENTS - ABS

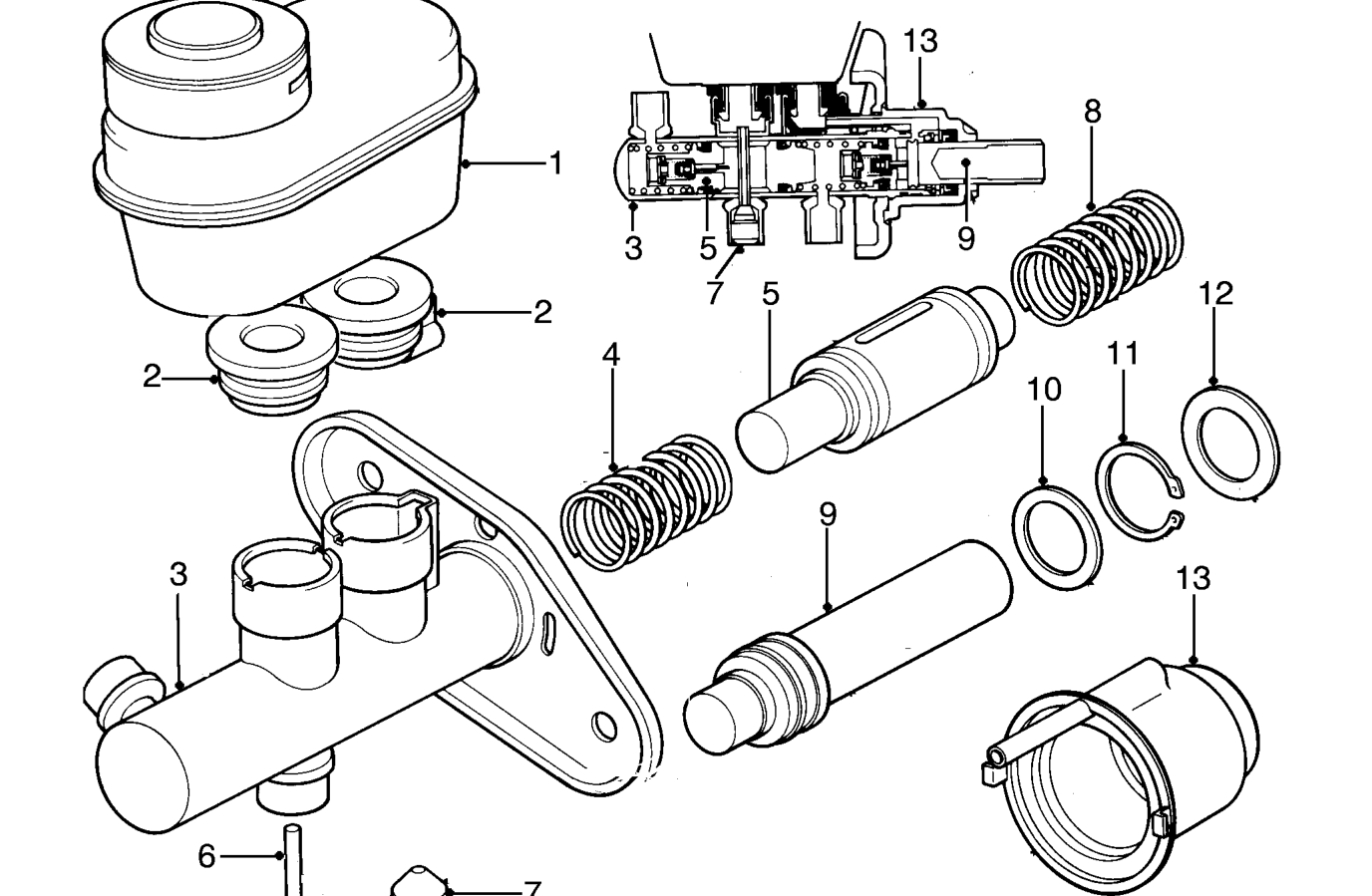

Master cylinder components - abs
  1. Brake fluid reservoir
  2. Seals
  3. Cylinder body
  4. Spring
  5. Secondary piston assembly
  6. Stop pin - secondary piston
  7. Pin securing screw
  8. Spring
  9. Primary piston assembly
  10. Washer
  11. Circlip
  12. Flat washer
  13. Transfer housing
